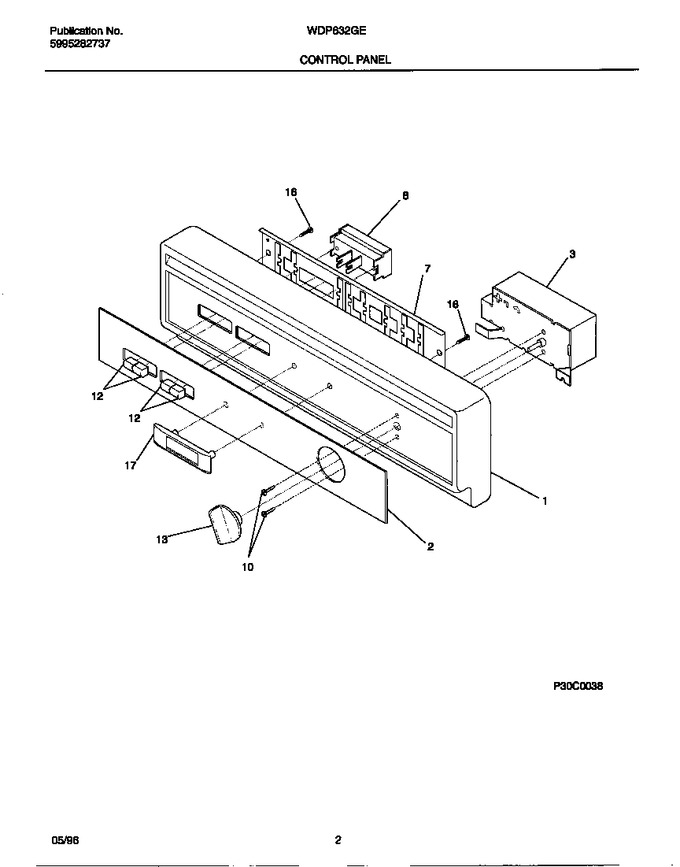

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303299934		Panel-control		Appelez-nous	-
2	154224101		Insert-control Pnl		Appelez-nous	-
3	154169201		Timer				$ 277.78
7	5300809950		Bracket-switch		Appelez-nous	-
8	154104801		Switch-selector, 2 Button, (2)		Appelez-nous	-
10	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
12	5303211241		Pushbutton				$ 6.73
13	5300809942		Knob-timer		Appelez-nous	-
16	5300809175		Screw 8b X 7/16``		Appelez-nous	-
17	218180205		Bezel-nameplate		Appelez-nous	-
*86360	154200401		Screw, 6-10 X 3/8, Pan Plask, Switch				$ 8.56
*86361	154131204		Shield-timer		Appelez-nous	-
*86362	154180701		Harness-wiring, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
