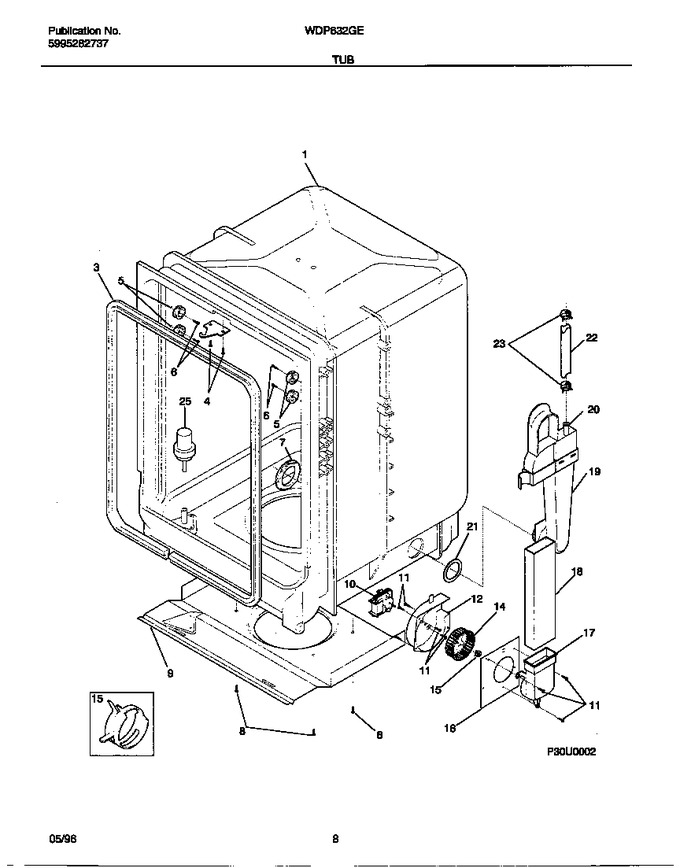

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303943090		Tub Assy W/gasket		Appelez-nous	-
2	5300809610		Strike Door		Appelez-nous	-
3	5300809611		Gasket Tub				$ 41.15
4	154151901		Screw-strike, (2)		Appelez-nous	-
5	5304507405		Roller-tub   (Replaces: 154213401)			Immediately	$ 25.79
6	5303943103		Screw W/washer,(8)			Immediately	$ 17.72
8	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
9	5303316289		Pan-bottom		Appelez-nous	-
10	5303943113		Motor-blower		Appelez-nous	-
11	154202301		Screw-blower Mtg, (8)		Appelez-nous	-
11	5300809724		Nut-blower (not Illustrated)		Appelez-nous	-
12	154160101		Housing-blower		Appelez-nous	-
14	08016015		Wheel-blower				$ 13.05
15	5300809728		Clamp-blower		Appelez-nous	-
16	154105902		Plate-blower Mounting		Appelez-nous	-
17	5300809729		Vent-blower		Appelez-nous	-
18	5300809617		Duct-blower		Appelez-nous	-
19	5300809616		Inlet-blower		Appelez-nous	-
20	5300809730		Cap-water Inlet		Appelez-nous	-
21	5300809618		Gasket Blower		Appelez-nous	-
22	154179901		Tubing-water Inlet		Appelez-nous	-
23	5300807813		Clamp		Appelez-nous	-
25	154144301		Float		Appelez-nous	-
*86364	154105801		Bracket, Wrapper To Tub		Appelez-nous	-
*86365	154200601		Screw-10-16 X 3/8				$ 7.98
*86366	154221501		Insulation-wrapper/tub		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
