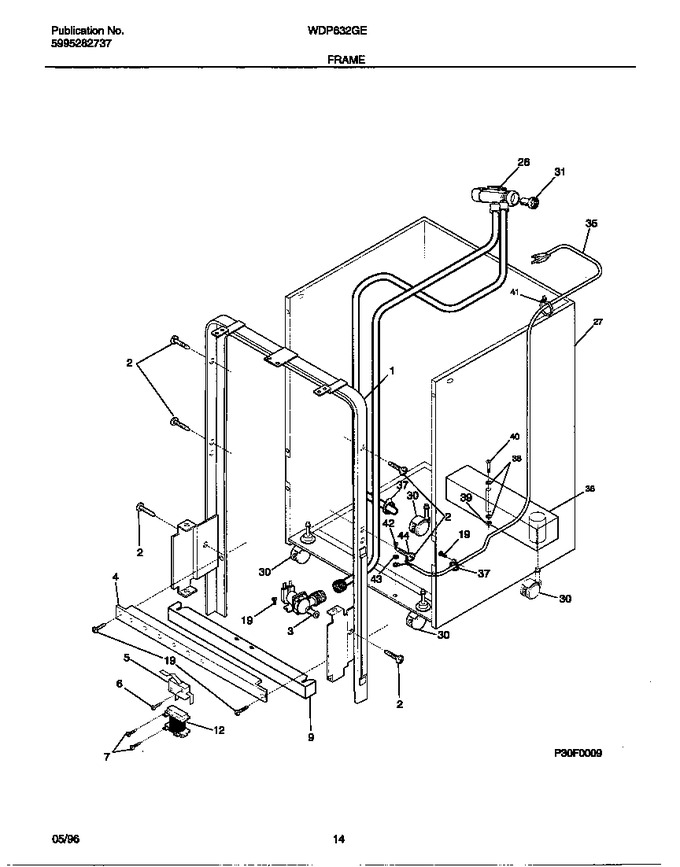

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154111901		Front Frame Assy		Appelez-nous	-
2	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
3	154111702		Valve-water		Appelez-nous	-
4	5303286368		Brace-front		Appelez-nous	-
5	154144601		Switch-float		Appelez-nous	-
6	154201001		Screw-float Switch, (2)		Appelez-nous	-
7	5300804672		Screw-relay		Appelez-nous	-
9	5300808522		Toe Plate		Appelez-nous	-
12	5303351059		Relay-motor				$ 8.35
19	154200601		Screw-10-16 X 3/8				$ 7.98
26	154187101		Hose & Coupler Assy				$ 220.50
27	154155303		Wrapper, Almond		Appelez-nous	-
30	5300809661		Caster		Appelez-nous	-
31	5303304813		Faucet Adapter Assy		Appelez-nous	-
35	154117801		Cord-electric		Appelez-nous	-
36	5303943102		Weight-block Assy		Appelez-nous	-
37	5300804426		Clamp, Hose & Coupler		Appelez-nous	-
38	5300808613		Washer-weight		Appelez-nous	-
39	5300808661		Nut, 1/4-20 Cadmium		Appelez-nous	-
40	5303301202		Screw-weight		Appelez-nous	-
41	5300809075		Tie - Wire		Appelez-nous	-
42	134154100		Screw-10-32 X 3/8   (Replaces: 154200701)				$ 13.46
43	5300807373		Washer		Appelez-nous	-
44	154123901		Cap, Mate-n-lok		Appelez-nous	-
*86368	154111802		Spacer		Appelez-nous	-
