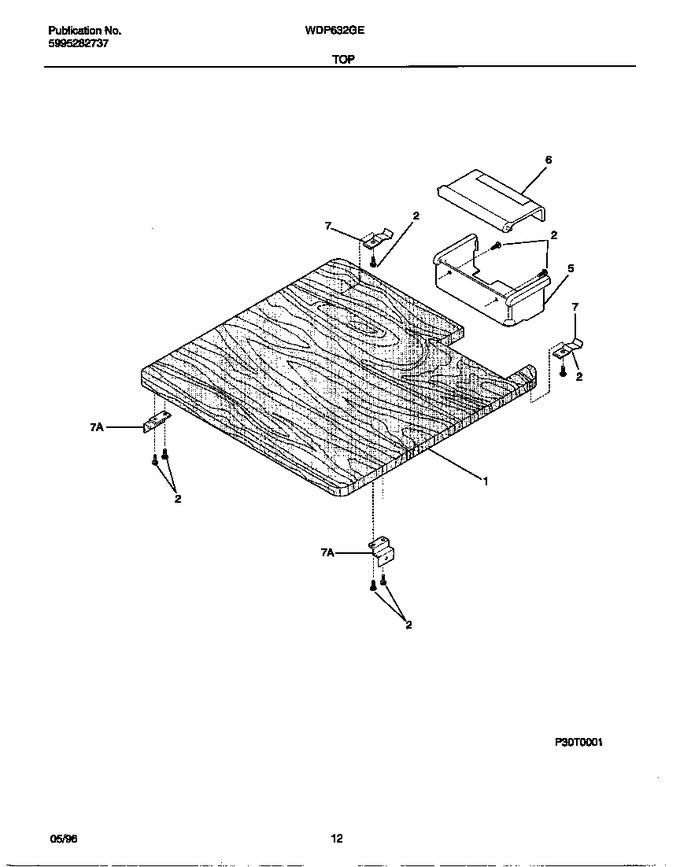

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154112202 | Panel-top, Maple |
|
- | |||||
| 2 | 5300807270 | Screw, Top, (6) |
|
$ 6.72 | |||||
| 5 | 154106001 | Receptacle, Hose & Cord |
|
- | |||||
| 6 | 154106101 | Cover, Hose & Cord |
|
- | |||||
| 7 | 5300806276 | Clip-top Panel, Rear |
|
- | |||||
| 7 | 5300809088 | Clip-top Panel, Front |
|
- |
