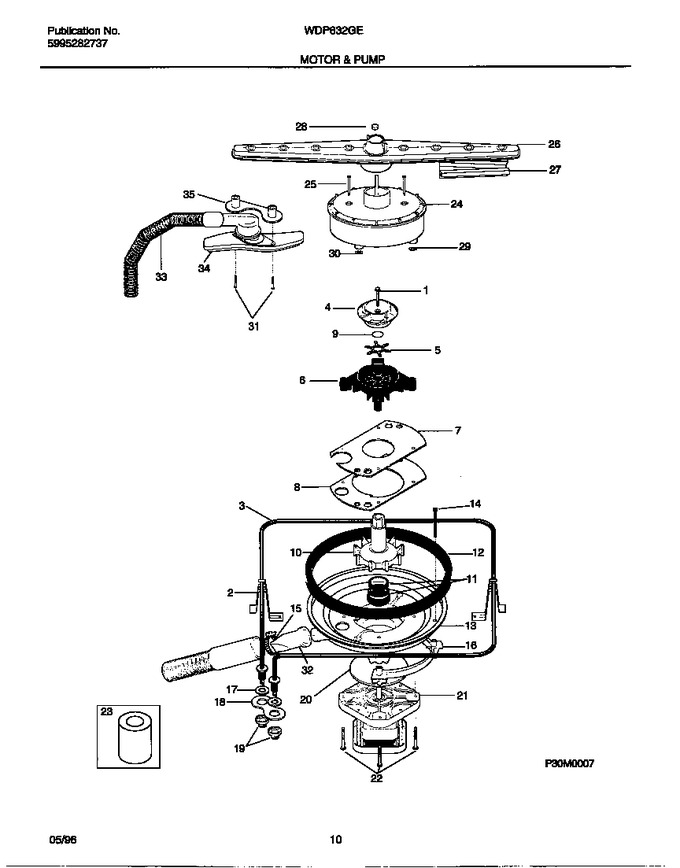

06 - Motor & Pump


07 - Top


08 - Frame


09 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154188901		Heater				$ 120.65
2	5300810094		Screw-heater Bracket (not Illustrated)		Appelez-nous	-
2	5300809585		Bracket-heater		Appelez-nous	-
3	154106202		Nut,heater ,(2)   (Replaces: 154106201)			Immediately	$ 18.32
4	5300809921		Plate-spacer				$ 12.39
5	5300809006		Plate - Pump				$ 45.94
7	5300809920		Macerator				$ 49.19
8	154200201		Screw-pump Housing		Appelez-nous	-
12	5300809918		Impeller-lower				$ 83.45
13	5300809007		Gasket - Pump				$ 18.06
14	5303943122		Housing-pump				$ 145.85
18	5300809984		Motor		Appelez-nous	-
19	154119401		Spray Arm-upper				$ 59.85
20	154126401		Plate-mounting, Upper Spray Arm		Appelez-nous	-
23	154190401		Nut-spray Arm				$ 21.00
24	154156602		Spray Arm-lower				$ 58.91
27	5300806353		Screw-upper Impeller				$ 12.06
28	5300809909		Impeller-upper				$ 71.56
29	5300809012		Screw-filter Housing, Hex Hd Ss, 10 2.875				$ 8.03
30	5303943124		Filter Assy				$ 151.67
31	5300809938		Shield-spray Arm, (2)				$ 37.05
32	154119301		Tube, Delivery		Appelez-nous	-
33	5300809587		Washer-heater		Appelez-nous	-
34	154064901		Washer-insulating				$ 8.14
35	154200901		Screw-motor Mtg				$ 14.39
37	5300803923		Tool				$ 57.38
39	5300803903		Seal Kit				$ 109.86
40	154611101		Clamp-hose   (Replaces: 154106801)				$ 12.05
42	5300809586		Gasket-pump				$ 85.64
43	5300809590		Clamp,pump				$ 47.93
47	5300809366		Watershield Assy				$ 2.26
48	5303316032		Screw,truss Ss ,8 .625				$ 10.45
52	154207501		Plate-strainer				$ 20.21
*86367	154103701		Screw, Torx Truss, 10 .875, Plate		Appelez-nous	-
