Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP308544 Screw, 10-24 X 1/2   (Replaces: 308544) In-Stock Immediately $ 6.98

1 327875 Main Chassis (almond) Appelez-nous -
3 WP307986 Hinge Pin   (Replaces: 307986) Special Order $ 11.78

4 307594 Ring, Retainer Appelez-nous -
5 327890 Hinge (r.h.) Appelez-nous -
5 258857 Screw, 10-32 X 1/2 Appelez-nous -
5 327891 Hinge (l.h.) Appelez-nous -
6 WP233550 Leg Leveling (4)   (Replaces: 233550) Special Order $ 7.16

7 308306 Pushnut Appelez-nous -
8 307985 Pin, Hinge Special Order $ 29.54

9 327892 Channel Arm Appelez-nous -
10 WP308126 Spring, Oven Door   (Replaces: 308126) Special Order $ 38.15

11 WP308125 Anchor, Spring   (Replaces: 308125) Special Order $ 10.94

12 327886 Frame, Front Appelez-nous -
12 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

13 261883 Oven Mounting Kit Appelez-nous -
14 309025 Vent, Oven Appelez-nous -
14 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.08

16 328472 Oven Appelez-nous -
16 254230 Screw, 10a X 1/2 Appelez-nous -
17 308043 Screw, 10-12 X 5/8 Appelez-nous -
17 310208 Socket, Lamp In-Stock Immediately $ 36.34

18 8009 Bulb, Oven Light   (Replaces: 247591) In-Stock Immediately $ 16.80

19 257314 Plug Button Appelez-nous -
21 308037 Gasket, Light Appelez-nous -
22 308039 Cover, Light Appelez-nous -
23 308038 Retainer, Light Appelez-nous -
24 254230 Screw, 10a X 1/2 Appelez-nous -
24 307964 Clip, Oven Appelez-nous -
25 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

25 308315 Thermostat, Lock/clean Appelez-nous -
26 328139 Resistor & Terminal Assembly Appelez-nous -
27 308533 Switch, Plunger Appelez-nous -
28 308522 Switch, Broil Appelez-nous -
29 308523 Switch, Bake Appelez-nous -
29 308536 Screw, 6a X 1 1/4 (2) Appelez-nous -
30 238614 Bumper, Cooktop (2)   (Replaces: 309119) Special Order $ 72.68

31 309111 Snubber, Door (2) Appelez-nous -
38 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

38 346772 Ballast Appelez-nous -
39 WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 49.92

39 WP75614 Line, Splice (5)   (Replaces: 309551) Special Order $ 44.41

39 799832 Kit. Porcelain Repair (white) Appelez-nous -
39 310220 Tech Sheet (service Information) Appelez-nous -
39 310053 Installation Instructions Appelez-nous -
39 309304 Use & Care Guide Appelez-nous -
39 309600 Booklet, Probe Appelez-nous -
39 310847 Cookbook (microwave) Appelez-nous -
39 308500 Book, Cooking Guide Appelez-nous -
39 72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

39 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 11.07

39 350956 Paint, Spray 13 Oz. (almond) Special Order $ 46.30

39 980511 List, Repair Parts Appelez-nous -
39 309102 Bracket Stand Off Appelez-nous -
39 253881 Wire, 14 Ga. (white) (25 Ft.) Appelez-nous -
39 253882 Wire, 14 Ga. (black) (25 Ft.) Appelez-nous -
39 253883 Wire, 14 Ga. (red) (25 Ft.) Appelez-nous -
39 253893 Wire, 14 Ga. (blue) (25 Ft.) Appelez-nous -
39 253894 Wire, 14 Ga. (orange) (25 Ft.) Appelez-nous -
39 253897 Wire, 16 Ga. (black) (25 Ft.) Appelez-nous -
39 253900 Wire, 16 Ga. (red) (25 Ft.) Appelez-nous -
39 253901 Wire, 16 Ga. (white) (25 Ft.) Appelez-nous -
39 253879 Wire, 18 Ga. (red) (25 Ft.) Appelez-nous -
39 253895 Wire, 18 Ga. (black) (25 Ft.) Appelez-nous -
39 253896 Wire, 18 Ga. (white) (25 Ft.) Appelez-nous -
39 WP261869 Citrine White (microwave)   (Replaces: 261869) Special Order $ 23.85

39 254323 Touch-up, Oven (self-clean) Appelez-nous -
39 511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 44.36

39 350942 Primer (white)   (Replaces: 206922) Special Order $ 80.69

39 206925 Leveler, Enamel Appelez-nous -
39 261900 Citrine White (6 Oz.) Special Order $ 51.34

39 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

39 799351 Blend, Thinner (1 Gal.) Appelez-nous -
39 WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 49.92

39 261582 Grease Appelez-nous -
39 WP482338 Sealer, Silastic (3 Oz.)   (Replaces: 482338) In-Stock Immediately $ 57.16

39 591014 Adhesive Loctite (1/3 Oz.) Appelez-nous -
978883 Almond Appelez-nous -
799340 Enamel, Black (1 Qt. Uncut) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

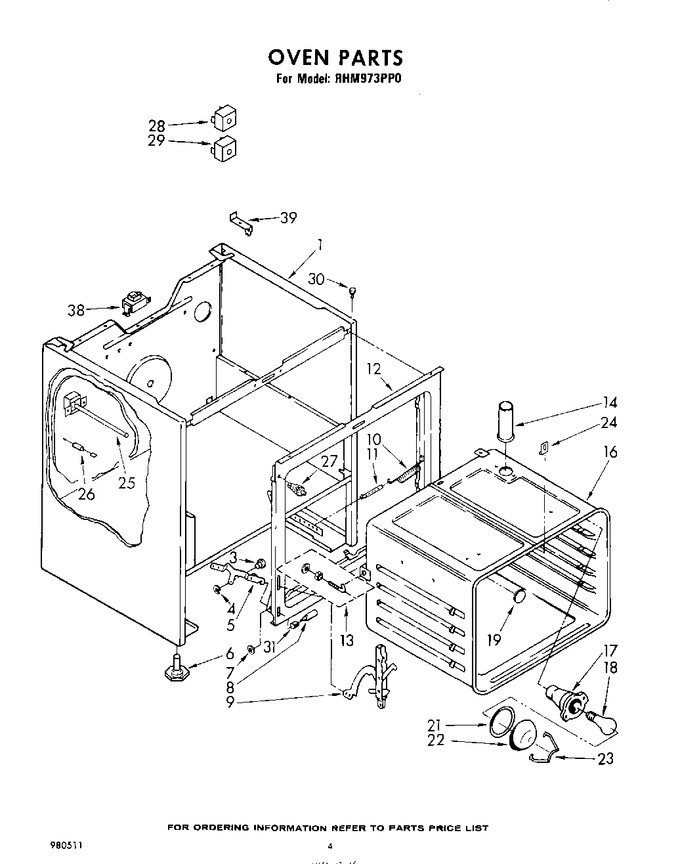

Diagram for RHM973PP0
