Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Screw, 10-16 X 1/2 (7)   (Replaces: 343641) In-Stock Immediately $ 7.07

1 307971 Cover, Rear Appelez-nous -
2 WP308544 Screw, 10-24 X 1/2 (2)   (Replaces: 308544) In-Stock Immediately $ 6.98

2 307972 Cover, Access Appelez-nous -
3 WP8203546 Block, Terminal   (Replaces: 258076) In-Stock Immediately $ 27.12

3 258077 Terminal, 1/4 Appelez-nous -
3 WP112432 Nut, (3)   (Replaces: 112432) Special Order $ 7.16

3 W10841059 Screw, 10-16 X 3/4 (2)   (Replaces: 98445) Appelez-nous -
4 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

4 307970 Bracket, Service Appelez-nous -
5 307983 Rail, L.h. (includes Illus. 6) Appelez-nous -
5 307982 Rail, R.h. (includes Illus. 6) Appelez-nous -
6 WP308685 Screw, 10a X 1/2 (2)   (Replaces: 253549) In-Stock Immediately $ 7.08

6 307979 Glide, Front (2) Appelez-nous -
7 WP681414 Screw, 10-32 X 1/2   (Replaces: 343631) In-Stock Immediately $ 7.07

7 307981 Bracket, Mounting (2) Appelez-nous -
7 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

8 246127 Screw, 10-32 X 5/8 (4) Appelez-nous -
8 WP660579 Unit, Broil   (Replaces: 308129) Special Order $ 140.80

9 308674 Rack, Broiler Appelez-nous -
10 MAL9000AXX Pan, Broiler   (Replaces: 306195) Special Order $ 72.26

11 308172 Rack, Oven (offset) Appelez-nous -
12 308173 Rack, Oven Appelez-nous -
13 246127 Screw, 10-32 X 5/8 (2) Appelez-nous -
13 WP308180 Unit, Bake   (Replaces: 308180) Special Order $ 96.92

14 WP681414 Screw, 10-32   (Replaces: 343631) In-Stock Immediately $ 7.07

14 308498 Ground Strap Appelez-nous -
15 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

15 309102 Bracket Appelez-nous -
16 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

16 309064 Shield Appelez-nous -
17 309211 Clip Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

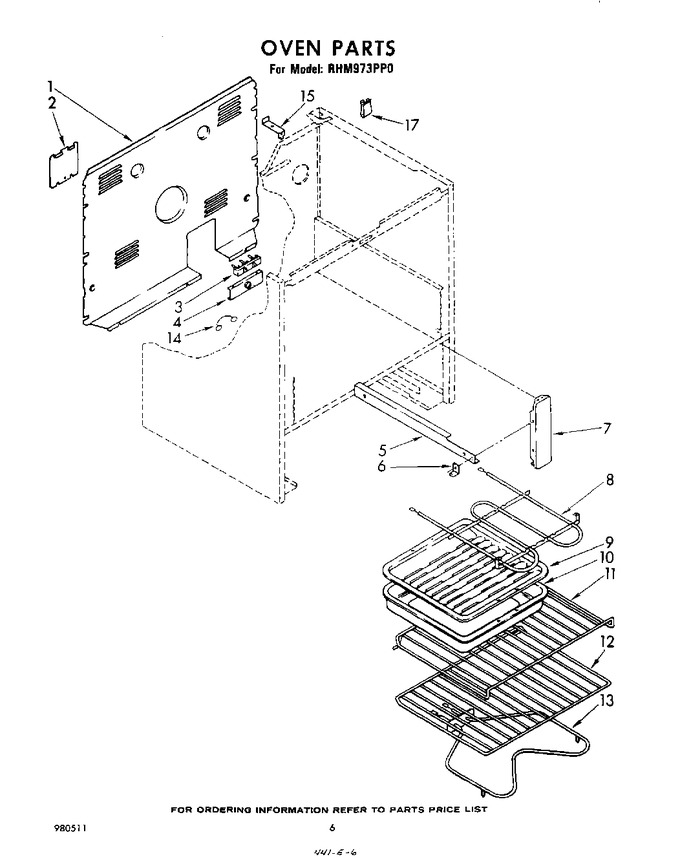

Diagram for RHM973PP0
