02 - Door And Drawer


03 - Oven , Lit/optional


04 - Section


05 - Cooktop


06 - Upper Chassis And Components


07 - Light, Hinge And Stirrer


08 - Control


09 - Magnetron And Air Flow


10 - Microwave Door And Latch

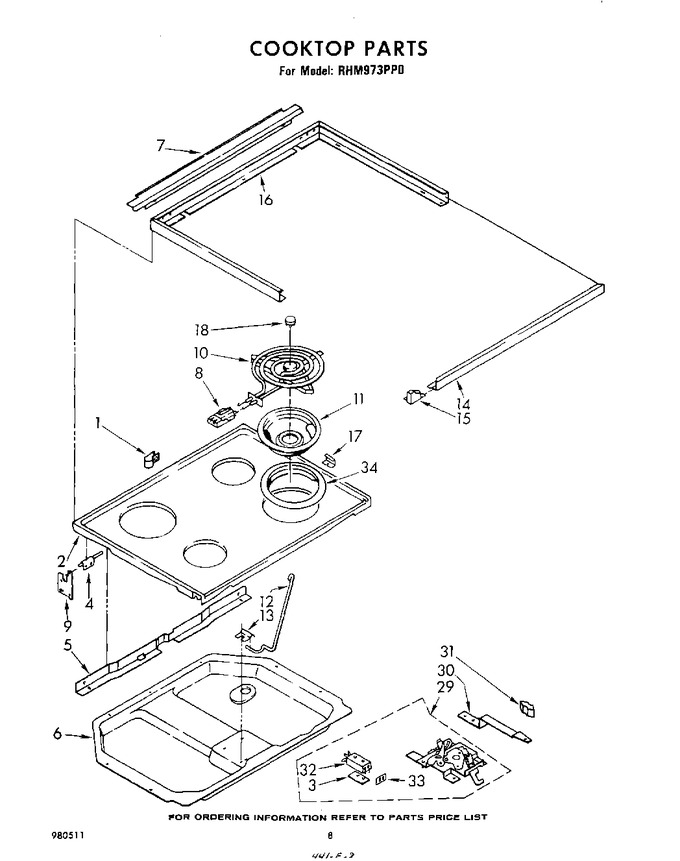

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308605		Clamp, Cable   (Replaces: 308605)				$ 10.08
1	WP965173		Screw, 10a X 1/2   (Replaces: 246132)			Immediately	$ 9.65
2	309014		Cooktop, Chrome		Appelez-nous	-
2	338177		Clip, ``j`` (2)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	328239		Hinge, Leaf Cooktop R.h.		Appelez-nous	-
4	WP308685		Screw   (Replaces: 98518)			Immediately	$ 7.08
4	328238		Hinge, Leaf Cooktop L.h.		Appelez-nous	-
5	308968		Shield, Wiring		Appelez-nous	-
5	308581		Screw, 10 X .5 Hex Head		Appelez-nous	-
6	308827		Burner Box		Appelez-nous	-
6	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
6	308581		Screw, 10 X .5hh		Appelez-nous	-
7	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
7	308981		Trim, Rear		Appelez-nous	-
8	WP486754		Screw, 6-32 X 1/4   (Replaces: 246119)				$ 6.75
8	330031		Receptacle   (Replaces: 258858)			Immediately	$ 14.48
9	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
9	308993		Hinge, Cooktop (2)		Appelez-nous	-
10	WPY04100165		Unit, Surface (6`` (2))   (Replaces: 306666)			Immediately	$ 50.62
10	WP660533		Unit, Surface (8`` (2))   (Replaces: 256704)			Immediately	$ 39.47
11	W10291024		Pan (8`` (2))   (Replaces: 306790)			Immediately	$ 49.90
11	W10291024		Pan (6`` (2))   (Replaces: 306789)			Immediately	$ 49.90
12	307968		Rod, Cooktop		Appelez-nous	-
13	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
13	307967		Retainer, Cooktop		Appelez-nous	-
14	308620		Trim, Front		Appelez-nous	-
15	308444		End Cap L.h.		Appelez-nous	-
15	309051		Screw, 8a X 3/8		Appelez-nous	-
15	98084		Clip (4)		Appelez-nous	-
15	308445		End Cap R.h.		Appelez-nous	-
16	308619		Trim, Side & Rear		Appelez-nous	-
16	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
16	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
17	308621		Bracket, Cooktop (6)		Appelez-nous	-
17	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
18	256904		Medallion		Appelez-nous	-
29	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
29	254230		Screw, 10a X 1/2		Appelez-nous	-
29	W11693756		Screw, 8a X 5/8   (Replaces: 258665)			Immediately	$ 12.65
29	328585		Latch Assembly		Appelez-nous	-
30	308413		Handle, Latch		Appelez-nous	-
30	308422		Screw, 10-24 X 1/2		Appelez-nous	-
31	307977		Knob, Latch		Appelez-nous	-
31	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81
32	98106		Screw (2)		Appelez-nous	-
32	308185		Switch, Limit		Appelez-nous	-
33	310100		Shield, Terminal		Appelez-nous	-
34	W10858781		Adapter Ring 8`` (2)   (Replaces: 306786)				$ 85.64
34	W10854470		Ring, Adapter (6`` (2))   (Replaces: 306785)				$ 81.37
