SELECT A DIAGRAM

02 - Door And Drawer


03 - Oven , Lit/optional


04 - Section


05 - Cooktop

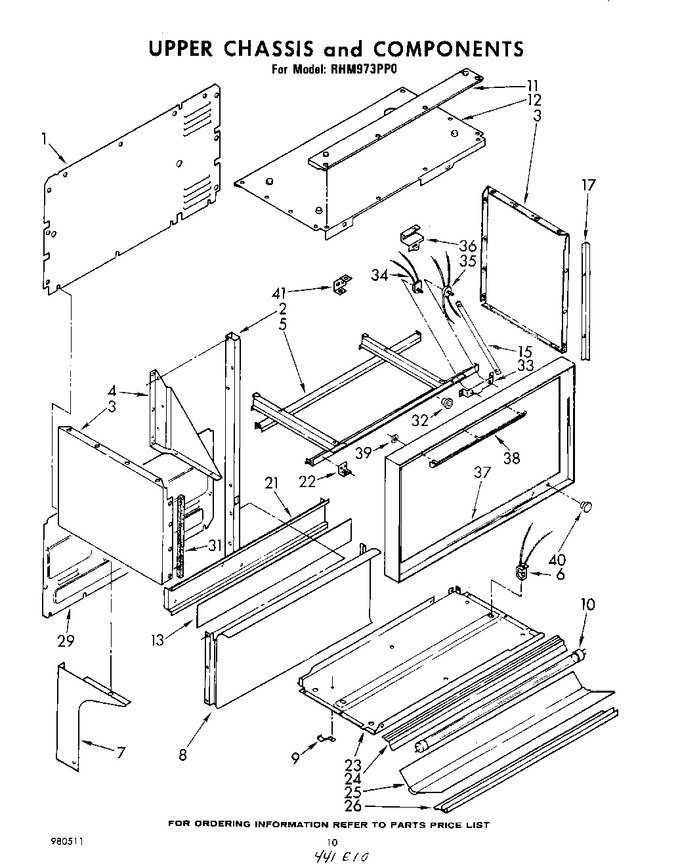

06 - Upper Chassis And Components


07 - Light, Hinge And Stirrer


08 - Control


09 - Magnetron And Air Flow


10 - Microwave Door And Latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1\2 (14)   (Replaces: 343641)			Immediately	$ 7.07
1	309507		Cover, Top Wire		Appelez-nous	-
2	308111		Support, Tubing R.h.		Appelez-nous	-
2	Y308109		Tubing, Support L.h.   (Replaces: 308109)				$ 53.59
3	308883		Pane, Side R.s. (almond)		Appelez-nous	-
3	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81
3	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
3	309100		Screw, 10a X 1/2		Appelez-nous	-
3	309523		Panel, Side L.s. (almond)		Appelez-nous	-
4	308875		Gusset, R.h.		Appelez-nous	-
4	309062		Clip, ``j``		Appelez-nous	-
4	308877		Gusset, L.h.		Appelez-nous	-
4	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
5	328397		Frame, Oven Support		Appelez-nous	-
5	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
5	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
6	246131		Screw, 6a X 3/8 (2)		Appelez-nous	-
6	328278		Socket Assembly, L. H.		Appelez-nous	-
6	328277		Socket Assembly, R.h.		Appelez-nous	-
7	328154		Trim, End L.h. (almond)		Appelez-nous	-
7	308980		Spacer (2)		Appelez-nous	-
7	328150		Trim, End R.h. (almond)		Appelez-nous	-
7	WP308544		Screw, 10-24 X 1/2 (6)   (Replaces: 308544)			Immediately	$ 6.98
7	310304		Screw, 10-32 (2)		Appelez-nous	-
7	246134		Screw, 10a X 1/2 (2)		Appelez-nous	-
8	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
8	308692		Panel, Backguard		Appelez-nous	-
9	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
9	308894		Spring, Retainer Glass		Appelez-nous	-
10	WP95292		Lamp, Fluorescent   (Replaces: 95292)			Immediately	$ 121.45
11	309051		Screw, 8a X 3/8 (4)		Appelez-nous	-
11	309501		Trim, Top		Appelez-nous	-
12	309513		Panel, Top (almond)		Appelez-nous	-
12	WP488627		Screw (8)   (Replaces: 342055)				$ 6.81
13	309211		Clip (2)		Appelez-nous	-
13	309144		Strip, Barrier		Appelez-nous	-
13	254217		Screw, 10a X 3/8		Appelez-nous	-
15	309483		Bracket, Support		Appelez-nous	-
15	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
17	309629		Bracket, Side Panel		Appelez-nous	-
17	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
21	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
21	308776		Brace		Appelez-nous	-
22	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
22	309454		Bracket, Frame (3)		Appelez-nous	-
23	309506		Panel, Bottom		Appelez-nous	-
24	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81
24	308896		Trim, Glass (rear)		Appelez-nous	-
25	328306		Panel, Glass Assembly		Appelez-nous	-
26	308897		Trim, Glass (front)		Appelez-nous	-
26	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81
29	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
29	308112		Cover, Rear		Appelez-nous	-
29	WP681414		Screw, 10-16 X 1/2 (3)   (Replaces: 343641)			Immediately	$ 7.07
31	308297		Seal, Foam		Appelez-nous	-
32	309552		Bushing, Wire		Appelez-nous	-
33	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
33	309455		Bracket, Switch		Appelez-nous	-
34	255912		Nut, 3/8-27		Appelez-nous	-
34	309549		Switch, Oven Light		Appelez-nous	-
35	309550		Switch, Top Light		Appelez-nous	-
36	309452		Bracket, Control Panel Mounting		Appelez-nous	-
37	WP488627		Screw, 8a X 1/2 (6)   (Replaces: 338156)				$ 6.81
37	309500		Frame, Outer		Appelez-nous	-
38	309499		Deflector, Air		Appelez-nous	-
39	WP90296		Push Nut   (Replaces: 308593)				$ 7.07
40	308784		Bezel, Switch (2)		Appelez-nous	-
41	309453		Bracket, Chassis Mounting		Appelez-nous	-
