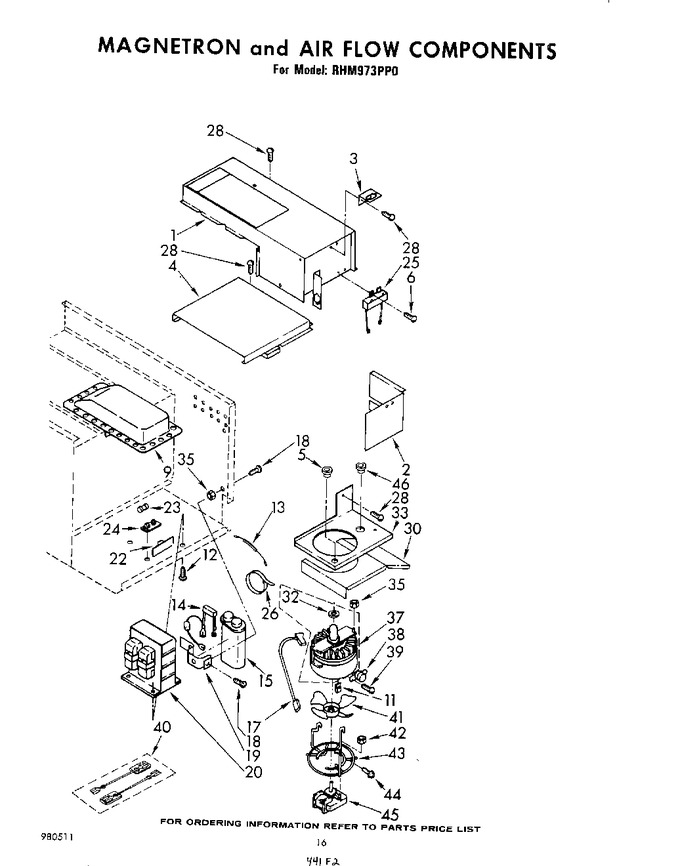

09 - Magnetron And Air Flow


10 - Microwave Door And Latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328398		Duct, Cooling Air		Appelez-nous	-
2	309899		Baffle, Air		Appelez-nous	-
3	308839		Bracket, Receptacle		Appelez-nous	-
4	328399		Duct, Discharge		Appelez-nous	-
5	308410		Bushing, Wire		Appelez-nous	-
6	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
11	338177		Clip		Appelez-nous	-
12	258857		Screw, 10-32 X 1/2 (4)		Appelez-nous	-
13	328185		Varistor Assembly		Appelez-nous	-
14	328057		Rectifier, High Voltage (includes Illus. 13)		Appelez-nous	-
15	309587		Capacitor		Appelez-nous	-
17	309084		Wire, High Voltage (capacitor)		Appelez-nous	-
18	258857		Screw, 10-32 X 1/2		Appelez-nous	-
19	308572		Bracket, Capacitor		Appelez-nous	-
20	307676		Transformer		Appelez-nous	-
22	310391		Shield, Fuse		Appelez-nous	-
23	WPW10017410		Fuse   (Replaces: 309796)			Immediately	$ 19.05
24	309795		Block, Fuse		Appelez-nous	-
25	309623		Relay, Reed		Appelez-nous	-
26	WPW10339879		Tie Cable   (Replaces: 309330)				$ 7.11
28	254217		Screw, 10a X 3/8		Appelez-nous	-
30	311084		Shield, Magnetron (use W/panasonic Magnetron)		Appelez-nous	-
32	307849		Gasket, Magnetron (use W/litton Magnetron)		Appelez-nous	-
32	310302		Gasket, Magnetron (use W/panasonic Magnetron)		Appelez-nous	-
33	309477		Duct, Bottom Air		Appelez-nous	-
35	WP112432		Nut, Mounting (nut, 10-32 Hex (2) (use W/litton Magnetron))   (Replaces: 112432)				$ 7.16
35	310300		Nut, Mounting (nut, 5mm-0.8 Flange (2) (use W/panasonic Magnetron))		Appelez-nous	-
37	832806		Magnetron Kit, Panasonic		Appelez-nous	-
38	307564		Thermostat		Appelez-nous	-
39	246131		Screw, 6a X 3/8		Appelez-nous	-
40	261945		Wire, High Voltage Magnetron (2) (use W/litton Magnetron)		Appelez-nous	-
40	311144		Wire, High Voltage Magnetron (2) (use W/panasonic Magnetron)		Appelez-nous	-
41	307535		Blade, Fan		Appelez-nous	-
42	309486		Nut		Appelez-nous	-
43	307534		Mount, Fan Motor		Appelez-nous	-
44	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
45	309849		Motor, Fan		Appelez-nous	-
46	309552		Bushing, Wire		Appelez-nous	-
