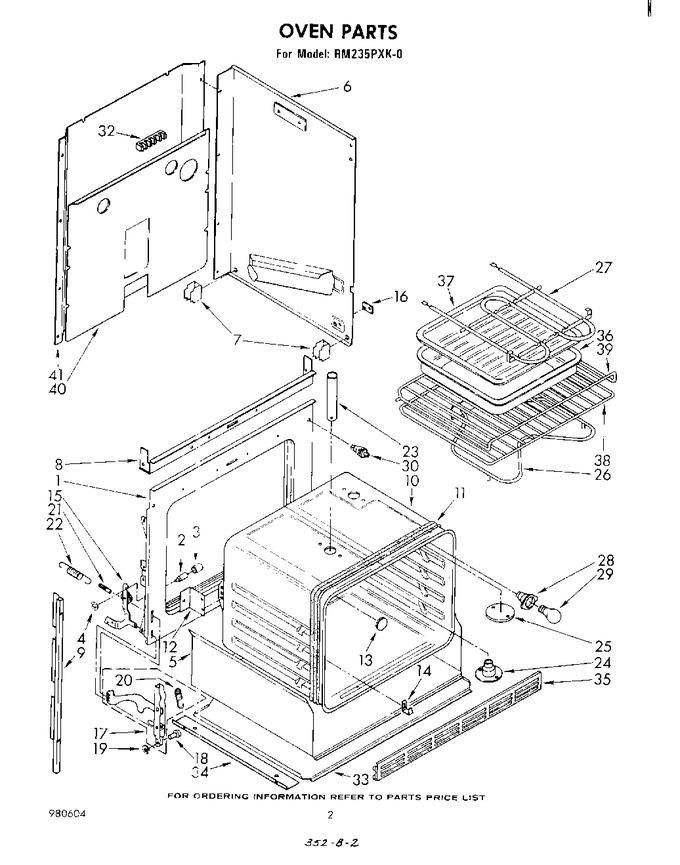

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328747		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	310770		Insulation Tray		Appelez-nous	-
6	311009		Side Wrapper (left Side)		Appelez-nous	-
6	WP308685		Side Wrapper (screw, 10a X 1/2 (14))   (Replaces: 253549)			Immediately	$ 7.08
6	WP681414		Side Wrapper (screw, 10-32)   (Replaces: 343631)			Immediately	$ 7.07
6	311006		Side Wrapper (right Side)		Appelez-nous	-
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
7	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
8	310693		Baffle, Top Insulation		Appelez-nous	-
8	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
9	WP308685		Side Trim R.s. (screw, 10a X 1/2 (8))   (Replaces: 253549)			Immediately	$ 7.08
9	310685		Side Trim R.s. (side Trim L.s.)		Appelez-nous	-
10	311056		Screw (3)		Appelez-nous	-
10	328757		Oven, 30`` Continuous Clean		Appelez-nous	-
11	309107		Heat Seal				$ 63.50
12	246127		Screw, 10-32 X 5/8 (6)		Appelez-nous	-
12	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
13	257314		Plug Button		Appelez-nous	-
14	98005642		Clip, Therm Bulb (2)   (Replaces: 258139)			Immediately	$ 74.64
15	328801		Hinge Ear, R.h.		Appelez-nous	-
15	328802		Hinge Ear, L.h.		Appelez-nous	-
16	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
16	310659		Plate, Side Panel (2)		Appelez-nous	-
17	329713		Channel Arm (2)		Appelez-nous	-
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Retainer Ring (2)		Appelez-nous	-
20	311092		Spring, Door Stop (2)		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 311897)				$ 10.94
22	308127		Spring, Oven Door (2)				$ 11.75
23	311691		Extension, Vent		Appelez-nous	-
24	310840		Eliminator, Smoke		Appelez-nous	-
24	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
24	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
25	310662		Plate, Cover		Appelez-nous	-
25	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
26	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
26	WP308180		Unit, Bake   (Replaces: 308180)				$ 96.92
27	WP660579		Unit, Broil (alternate)   (Replaces: 311713)				$ 140.80
27	246127		Unit, Broil (screw, 10-32 X 5/8)		Appelez-nous	-
27	WP660579		Unit, Broil (alternate)   (Replaces: 311714)				$ 140.80
28	310208		Socket, Oven Light (alternate)			Immediately	$ 36.34
28	308043		Socket, Oven Light (screw, 10-12 X 7/8 (2))		Appelez-nous	-
28	307856		Socket, Oven Light (alternate)		Appelez-nous	-
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	310345		Switch, Door				$ 94.86
32	W10841059		Screw, 10-16 X 3/4 (2)   (Replaces: 98445)		Appelez-nous	-
32	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
32	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
33	310458		Cover, Bottom		Appelez-nous	-
34	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
34	311592		Angle, Support (2)		Appelez-nous	-
35	309029		Screw, Black 8-15 X 1/2 (3)		Appelez-nous	-
35	310668		Grill, Bottom				$ 556.11
36	4396923		Broil Pan   (Replaces: 310976)			Immediately	$ 52.04
37	4396923		Grid, Broil Pan   (Replaces: 258171)			Immediately	$ 52.04
38	308173		Rack, Oven (straight)		Appelez-nous	-
39	308172		Rack, Oven (offset)		Appelez-nous	-
40	310459		Panel, Back		Appelez-nous	-
40	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
41	311012		Cover, Rear		Appelez-nous	-
41	WP308685		Screw, 10a X 1/2 (12)   (Replaces: 253549)			Immediately	$ 7.08
