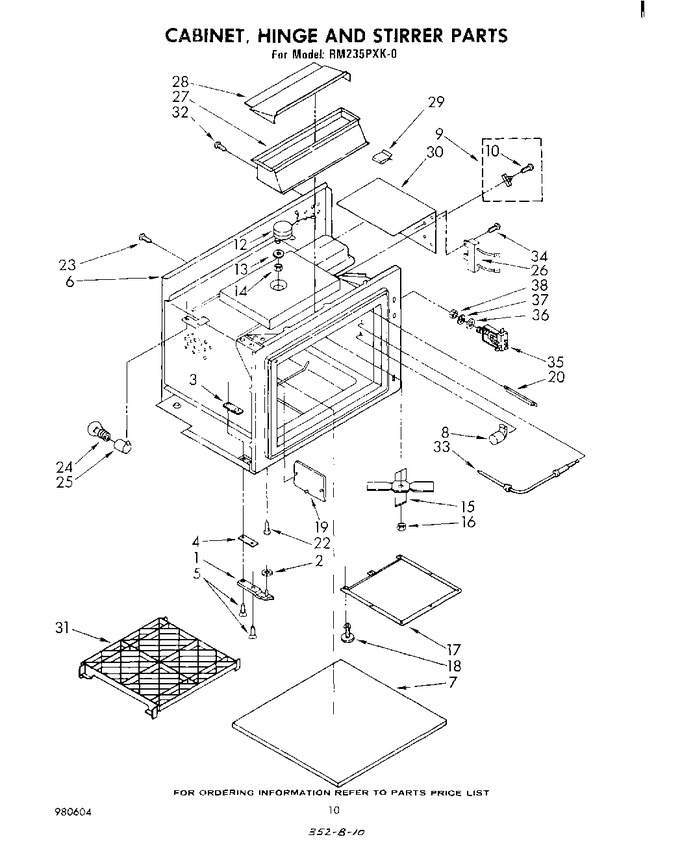

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 329070 | Hinge Door (top) |
|
- | |||||
| 1 | 329071 | Hinge Door (bottom) |
|
- | |||||
| 2 | 312147 | Washer |
|
- | |||||
| 3 | 312092 | Plate, Nut (2) |
|
- | |||||
| 4 | 311991 | Shim, Hinge Lock (2) |
|
- | |||||
| 5 | 311912 | Screw, 10 X 32 (2) |
|
- | |||||
| 7 | 309145 | Base, Ceramic (alternate) |
|
- | |||||
| 7 | 311058 | Base, Ceramic (alternate (install W/ Silastic No.482338)) |
|
- | |||||
| 8 | 311286 | Shelf, Support (4) |
|
- | |||||
| 9 | 309279 | Thermal Fuse |
|
- | |||||
| 10 | 246131 | Screw, 6a X 3/8 |
|
- | |||||
| 12 | 310950 | Motor, Stirrer (alternate) |
|
- | |||||
| 12 | 311515 | Motor, Stirrer (alternate) |
|
- | |||||
| 13 | 311245 | Washer, Internal Lock |
|
- | |||||
| 14 | 309768 | Nut |
|
- | |||||
| 15 | 309976 | Stirrer Blade |
|
- | |||||
| 16 | 307555 | Nut, 1/4-20 |
|
- | |||||
| 17 | 309441 | Cover, Stirrer |
|
- | |||||
| 18 | 310423 | Fastener (8) |
|
- | |||||
| 19 | 307516 | Cover |
|
- | |||||
| 20 | 309437 | Cover, Rivet |
|
- | |||||
| 22 | 254217 | Screw, 10a X 3/8 (4) |
|
- | |||||
| 23 | WP308685 | Screw, 10a X 1/2 (2) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 24 | 307519 | Socket, Snap-in |
|
- | |||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 26 | 309941 | Reed Relay (alternate) |
|
- | |||||
| 26 | 309623 | Reed Relay (alternate) |
|
- | |||||
| 27 | 309444 | Baffle, Air Exhaust |
|
- | |||||
| 28 | 311702 | Air Deflector |
|
- | |||||
| 29 | 311149 | Clip, Cover Air Duct (7) |
|
- | |||||
| 30 | 311695 | Cover, Air Duct |
|
- | |||||
| 31 | 311318 | Shelf, Convenience |
|
- | |||||
| 32 | WP488627 | Screw, 8a X 1/2 (2) (Replaces: 338156) |
|
$ 6.81 | |||||
| 33 | 311438 | Probe, Temperature |
|
- | |||||
| 34 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 35 | 309637 | Jack, Probe |
|
- | |||||
| 36 | 311245 | Washer, Internal Lock |
|
- | |||||
| 37 | 309769 | Washer Probe |
|
- | |||||
| 38 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 38 | 309768 | Nut |
|
- | |||||
| 38 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 38 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 38 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 38 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 38 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 38 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 38 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 38 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 38 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 38 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 38 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 38 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 38 | 261881 | Rotisserie Kit |
|
- | |||||
| 38 | 307677 | Browning Tray (micro) |
|
- | |||||
| 38 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 38 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 38 | 261582 | Grease |
|
- | |||||
| 38 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 38 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 38 | WP75614 | Line, Splice (5) (Replaces: 309551) |
|
$ 44.41 | |||||
| 38 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| LIT311436 | Installation Instructions |
|
- | ||||||
| LIT309600 | Booklet, Probe |
|
- | ||||||
| LIT308500 | Book, Cooking Guide |
|
- | ||||||
| LIT311420 | Use & Care Guide |
|
- | ||||||
| LIT311762 | Tech Sheet |
|
- | ||||||
| LIT980604 | List, Repair Parts |
|
- | ||||||
| LIT310929 | Guide, Bi-level Cooking |
|
- | ||||||
| LIT310847 | Cookbook (microwave) |
|
- |
