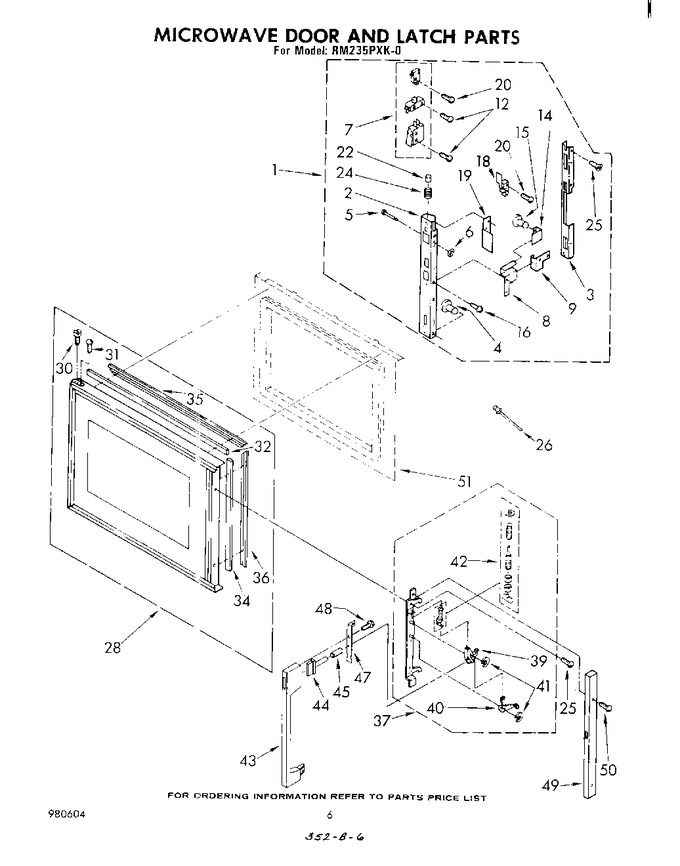

04 - Microwave Door And Latch


05 - Control Panel


06 - Cabinet,hinge And Stirrer, Literature


07 - Magnetron And Air Flow


08 - Oven Door


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328659		Interlock Assembly		Appelez-nous	-
4	258666		Spacer (4)		Appelez-nous	-
5	307603		Pin, Roller (3)		Appelez-nous	-
6	307605		Ring Retainer (3)		Appelez-nous	-
7	832773		Switch Kit, Door (kit Contains 2 Switches. Both Switches Must Be Replaced If One Fails) Note: Fuse		Appelez-nous	-
7	WPW10017410		Switch Kit, Door (kit Contains 2 Switches. Both Switches Must Be Replaced If One Fails) Note: Fuse M   (Replaces: 311167)			Immediately	$ 19.05
8	310148		Bracket, Switch		Appelez-nous	-
9	307611		Insulator, Switch		Appelez-nous	-
12	98106		Xscrew (2)		Appelez-nous	-
14	310330		Barrier, Visibility		Appelez-nous	-
15	310951		Rivet, Accordian (5)		Appelez-nous	-
16	310629		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
18	311983		Switch, Light (alternate)		Appelez-nous	-
18	310149		Switch, Light (alternate)		Appelez-nous	-
19	310154		Insulator, Switch		Appelez-nous	-
20	310211		Screw, 4-40 X 1 (2)		Appelez-nous	-
22	310124		Damper		Appelez-nous	-
24	310199		Spring, Interlock		Appelez-nous	-
25	309080		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
26	311928		Rivet (3)				$ 5.33
28	329430		Door Assembly		Appelez-nous	-
30	WPW10068250		Screw, 8d X 5/16 (2)   (Replaces: 311776)				$ 3.66
31	WPW10068250		Screw, 8-32 (6)   (Replaces: 311777)				$ 3.66
32	311634		Seal, Top & Bottom (2) (alternate)		Appelez-nous	-
32	311342		Seal, Top & Bottom (2) (alternate)		Appelez-nous	-
34	311343		Seal Sides (2) (alternate)		Appelez-nous	-
34	311635		Seal Sides (2) (alternate)		Appelez-nous	-
35	311340		Retainer, Top & Bottom Seals (2)		Appelez-nous	-
36	311341		Retain, Side Seal (2)		Appelez-nous	-
37	328740		Latch Plate		Appelez-nous	-
39	310119		Cam, Latch		Appelez-nous	-
40	310120		Lever, Latch Cam		Appelez-nous	-
41	WPY014874		Ring, ``e``   (Replaces: 310386)				$ 6.98
42	832797		Plunger, Latch		Appelez-nous	-
43	310110		Handle, Door		Appelez-nous	-
44	310112		Button, Door Handle		Appelez-nous	-
45	310197		Spring, Door Handle		Appelez-nous	-
47	310111		Bracket, Door Handle		Appelez-nous	-
48	WP489128		Screw, 8-32 X 7/16 (4)   (Replaces: 311722)				$ 9.79
49	310125		End Cap, Door		Appelez-nous	-
50	310210		Screw, 8-32 X 5/16 (2)		Appelez-nous	-
