SELECT A DIAGRAM

02 - Oven


03 - Cabinet And Air Flow


04 - Microwave Door And Latch


05 - Control Panel


06 - Cabinet,hinge And Stirrer, Literature

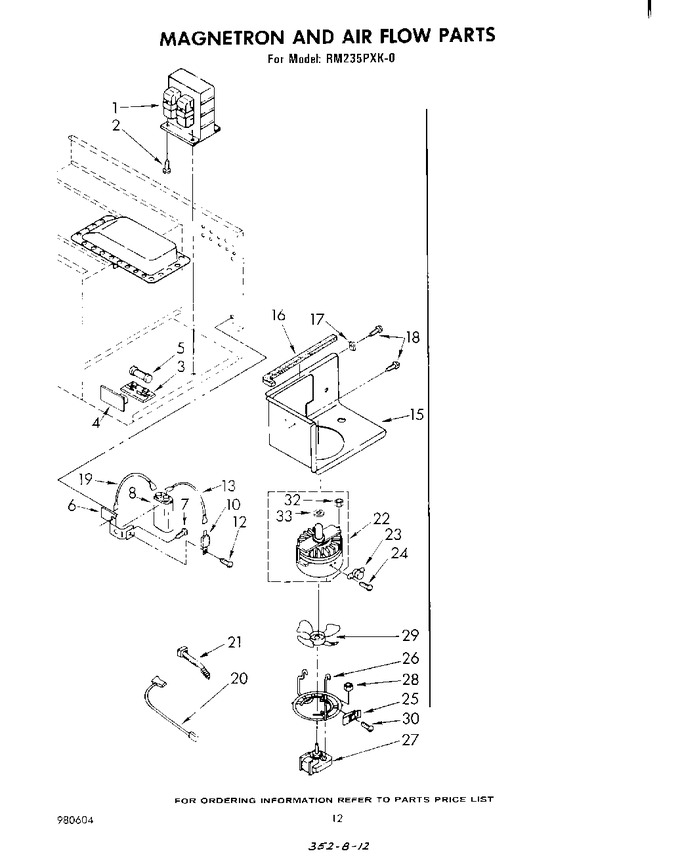

07 - Magnetron And Air Flow


08 - Oven Door


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307676		Transformer		Appelez-nous	-
2	312185		Screw, 10-32 X 1/2 (4)		Appelez-nous	-
3	309795		Block, Fuse		Appelez-nous	-
4	310391		Shield, Fuse		Appelez-nous	-
5	WPW10017410		Fuse   (Replaces: 311167)			Immediately	$ 19.05
6	308572		Bracket, Capacitor		Appelez-nous	-
7	258857		Screw, 10-32 X 1/2		Appelez-nous	-
8	311724		Capacitor (includes 329163 Resistor, 2 Watt 10m) (alternate)		Appelez-nous	-
8	311723		Capacitor (includes 329163 Resistor, 2 Watt 10m) (alternate)		Appelez-nous	-
10	832836		Rectifier, High Voltage		Appelez-nous	-
12	310629		Screw, 8-32 X 3/8		Appelez-nous	-
13	311466		Jumper, High Voltage		Appelez-nous	-
15	307529		Duct, Cooling Air		Appelez-nous	-
16	WP854334		Seal, Air Vent   (Replaces: 307618)				$ 11.95
17	338177		Clip (2)		Appelez-nous	-
18	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
19	311467		Jumper, High Voltage		Appelez-nous	-
20	309084		Wire, High Voltage (2)		Appelez-nous	-
21	WPW10339879		Cable Tie (2)   (Replaces: 309330)				$ 7.11
22	311461		Magnetron (alternate)		Appelez-nous	-
22	311505		Magnetron (alternate)		Appelez-nous	-
23	307564		Thermostat		Appelez-nous	-
24	246131		Screw, 6a X 3/8 (2)		Appelez-nous	-
25	308845		Fastener, Speed Nut (3)		Appelez-nous	-
26	311905		Mount, Motor (fan)		Appelez-nous	-
27	310031		Transmotor (alternate)		Appelez-nous	-
27	311179		Transmotor (alternate)		Appelez-nous	-
28	311136		Nut (2)		Appelez-nous	-
29	307535		Blade, Fan		Appelez-nous	-
30	WP681414		Screw, 10-16 X 1/2 (3)   (Replaces: 343641)			Immediately	$ 7.07
32	310300		Nut, 5mm Flange (2)		Appelez-nous	-
33	310302		Gasket, Magnetron		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
