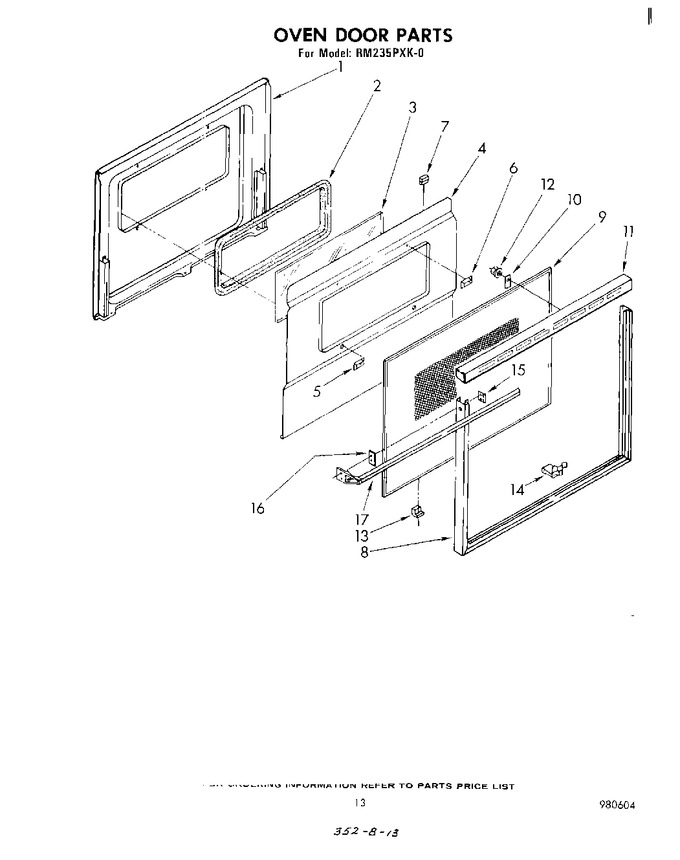

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw, 10a X 1\2 (3)   (Replaces: 253549)			Immediately	$ 7.08
1	338177		``j`` Clip (2)		Appelez-nous	-
1	311056		Screw, (4)		Appelez-nous	-
1	327858		Liner, Door		Appelez-nous	-
2	258711		Seal, Pano Glass		Appelez-nous	-
3	258988		Glass, Inner 30``		Appelez-nous	-
4	307924		Baffle, Insulation		Appelez-nous	-
5	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
5	258990		Spacer, Insulation Baffle (2)		Appelez-nous	-
6	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
6	258990		Spacer, Insulation Baffle (2)		Appelez-nous	-
7	255859		Channel, Rubber (4)		Appelez-nous	-
8	310427		Frame, Door 30``		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
10	310705		Hold Down, Glass (2)		Appelez-nous	-
11	310428		Top, Door Frame		Appelez-nous	-
11	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
12	WP90296		Fastener, Pushnut (2)   (Replaces: 308593)				$ 7.07
13	309152		Cushion, Oven Door (3)		Appelez-nous	-
14	310706		Clip, Glass (10)		Appelez-nous	-
15	311506		Clip (2)		Appelez-nous	-
16	310707		Spacer, Door Handle (2)		Appelez-nous	-
17	WP912618		Screw, Handle (2)   (Replaces: 308541)				$ 6.98
17	311573		Handle, Oven Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
