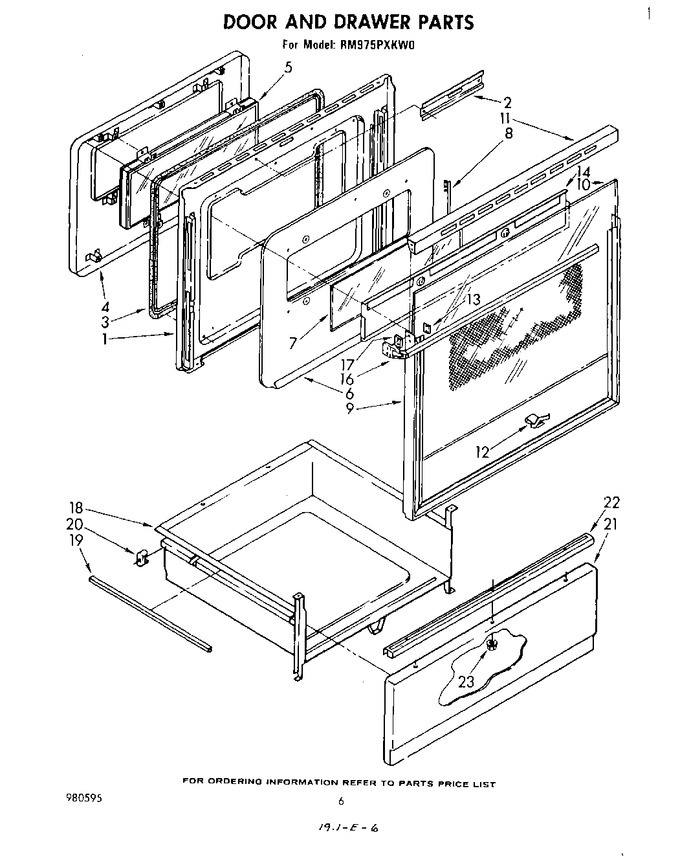

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311056		Screw (2)		Appelez-nous	-
1	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
1	338177		``j`` Clip (2)		Appelez-nous	-
1	327869		Liner, Door		Appelez-nous	-
2	311054		Screw (2)		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
3	311904		Seal, Fiberglass		Appelez-nous	-
4	327898		Panel, Inner		Appelez-nous	-
5	309844		Window Package		Appelez-nous	-
5	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
6	WP308685		Screw, 10a X 1/2 (8)   (Replaces: 253549)			Immediately	$ 7.08
6	308021		Retainer, Insulation		Appelez-nous	-
7	309842		Glass (6.81`` X 18.31``)		Appelez-nous	-
8	309843		Retainer, Glass		Appelez-nous	-
9	310427		Frame, Door		Appelez-nous	-
10	309069		Glass, Outer		Appelez-nous	-
11	310428		Top, Door Frame		Appelez-nous	-
11	307748		Screw, 10a X 1/2 (2) (black)		Appelez-nous	-
12	310706		Clip, Glass (8)		Appelez-nous	-
13	311506		Clip (2)		Appelez-nous	-
14	309056		Baffle, Heat		Appelez-nous	-
14	WP90296		Pushnut (2)   (Replaces: 308593)				$ 7.07
16	WP912618		Screw (4)   (Replaces: 308541)				$ 6.98
16	311573		Handle, Oven Door		Appelez-nous	-
17	310707		Spacer, Door Handle (2)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
20	307980		Glide, Rear (2)		Appelez-nous	-
21	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
21	309923		Panel Drawer (black)		Appelez-nous	-
21	307537		Panel, Drawer (screw, 8-32 (3))		Appelez-nous	-
21	307939		Panel, Drawer (almond)		Appelez-nous	-
21	307935		Panel Drawer (white)		Appelez-nous	-
22	310399		Handle, Drawer		Appelez-nous	-
22	WP912618		Screw (3)   (Replaces: 308541)				$ 6.98
23	WP486255		Palnut, 8-32   (Replaces: 308542)				$ 5.54
