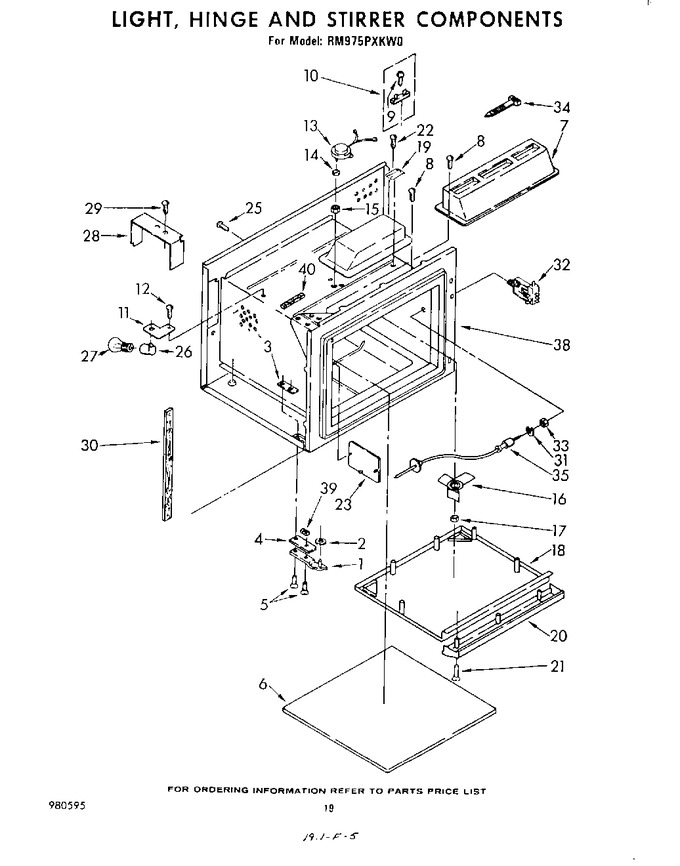

11 - Light, Hinge And Stirrer , Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329071		Hinge Door (bottom)		Appelez-nous	-
1	329070		Hinge Door (top)		Appelez-nous	-
2	312147		Washer		Appelez-nous	-
3	312092		Plate, Nut (2)		Appelez-nous	-
4	311991		Hinge Shim (2)		Appelez-nous	-
5	311912		Screw, 10-32 (4)		Appelez-nous	-
6	311058		Base, Ceramic (alternate (install W/ Silastic No.482338))		Appelez-nous	-
6	309145		Base, Ceramic (alternate)		Appelez-nous	-
7	307520		Baffle, Air Exhaust		Appelez-nous	-
8	WP487353		Screw, 6-18 X 3/8 (2)   (Replaces: 307842)				$ 6.81
9	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
10	309279		Thermal Fuse		Appelez-nous	-
11	308417		Bracket, Lamp		Appelez-nous	-
12	342043		Screw		Appelez-nous	-
13	311223		Motor, Stirrer		Appelez-nous	-
14	311245		Washer, Internal Lock		Appelez-nous	-
15	309768		Nut		Appelez-nous	-
16	309368		Stirrer, 3-blade		Appelez-nous	-
17	307555		Nut, 1/4-20		Appelez-nous	-
18	307511		Cover, Stirrer		Appelez-nous	-
19	308853		Fastener Slide (2)		Appelez-nous	-
20	311727		Cover, Stirrer Front		Appelez-nous	-
21	308554		Screw, 10 X 2 (3)		Appelez-nous	-
22	WP308685		Screw   (Replaces: 309234)			Immediately	$ 7.08
23	254217		Screw, 10a X 3/8 (4)		Appelez-nous	-
23	307516		Cover		Appelez-nous	-
25	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
26	307519		Socket, Snap-in		Appelez-nous	-
27	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
28	309554		Shield, Lamp		Appelez-nous	-
29	254217		Screw, 10a X 3/8		Appelez-nous	-
30	311929		Seal, Foam				$ 32.90
31	311245		Washer, Internal Lock		Appelez-nous	-
32	309637		Jack, Probe		Appelez-nous	-
33	311137		Nut		Appelez-nous	-
34	WPW10339879		Cable, Tie   (Replaces: 309330)				$ 7.11
35	311438		Temperature Probe		Appelez-nous	-
39	309816		Seal Foam		Appelez-nous	-
40	980595		List, Repair Parts		Appelez-nous	-
40	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
40	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
40	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
40	310053		Installation Instructions		Appelez-nous	-
40	WP3400029		Use & Care Guide   (Replaces: 311426)			Immediately	$ 6.98
40	309600		Booklet, Probe		Appelez-nous	-
40	310847		Cookbook (microwave)		Appelez-nous	-
40	308500		Book, Cooking Guide		Appelez-nous	-
40	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
40	309815		Seal Foam		Appelez-nous	-
40	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
40	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
40	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
40	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
40	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
40	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
40	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
40	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
40	242831		Wire (14 Ga. 200 C Red)				$ 342.23
40	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
40	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
40	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
40	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
40	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 23.85
40	254323		Touch-up, Oven (self-clean)		Appelez-nous	-
40	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
40	350942		Primer (white)   (Replaces: 206922)				$ 80.69
40	206925		Leveler, Enamel		Appelez-nous	-
40	261890		Harvest Gold		Appelez-nous	-
40	285006		Enamel, Black   (Replaces: 799339)			Immediately	$ 51.34
40	350930		White   (Replaces: 799343)			Immediately	$ 34.39
40	261900		Citrine White (5 Oz.)				$ 51.34
40	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
40	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
40	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
40	261582		Grease		Appelez-nous	-
40	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
40	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
40	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
40	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
40	261881		Rotisserie Kit		Appelez-nous	-
40	310878		Rack, Meat (micro)		Appelez-nous	-
40	307677		Browning Tray (micro)		Appelez-nous	-
40	311768		Tech Sheet		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	261891		Xharvest Gold		Appelez-nous	-
	978883		Almond		Appelez-nous	-
