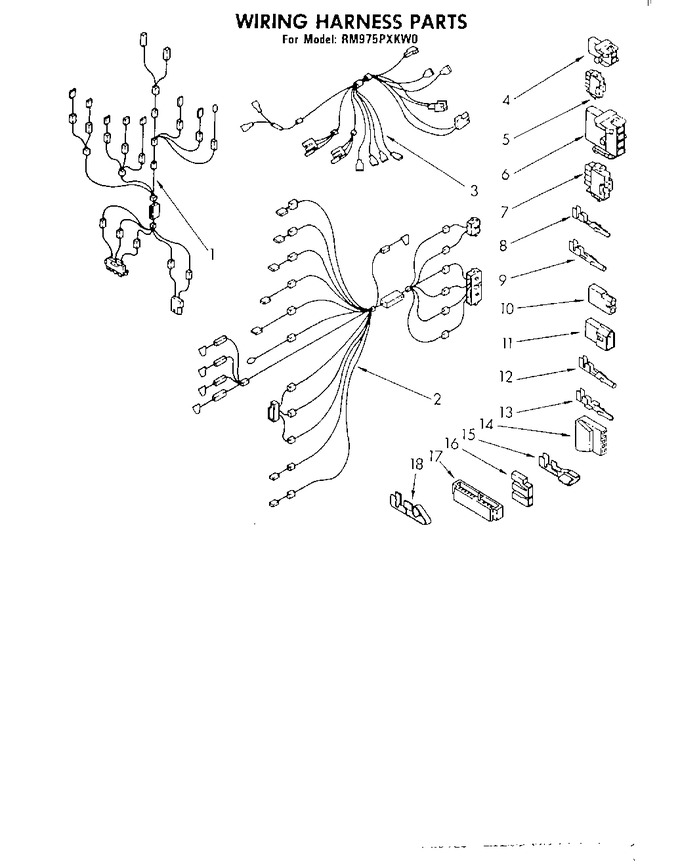

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310982		Harness, Main		Appelez-nous	-
2	311775		Harness, Control Panel		Appelez-nous	-
3	310980		Harness, Interlock		Appelez-nous	-
4	310959		Cap, Terminal (uses 310222 Or 310223 Pin Terminal)		Appelez-nous	-
5	310957		Plug, Circuit (uses 310959 Cap) (uses 310222 Or 310223 Pin Terminal)		Appelez-nous	-
6	310960		Cap, Terminal (uses 310222 Or 310223 Pin Terminal)		Appelez-nous	-
7	310958		Plug, Circuit (uses 310222 Or 310223 Pin Terminal) (uses 310960 Cap)		Appelez-nous	-
8	310222		Terminal, Pin (male)		Appelez-nous	-
9	310223		Terminal, Pin (female)		Appelez-nous	-
10	717252		Receptacle, Terminal (2-way) (uses 94614 Terminal) (uses 717253 Plug)		Appelez-nous	-
11	717253		Plug, Terminal (uses 94613 Terminal)		Appelez-nous	-
12	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
13	94613		Terminal, (male)		Appelez-nous	-
14	60688		Housing, Relay Connector (uses 308569 Terminal)		Appelez-nous	-
15	308569		Terminal		Appelez-nous	-
16	310241		Insulator		Appelez-nous	-
17	309606		Housing, Edge Connector (uses 60279 Terminal)		Appelez-nous	-
18	60279		Terminal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
