02 - Cook Top


03 - Oven


04 - Door And Drawer


05 - Oven


06 - Upper Chassis


07 - Control Panel


08 - Wiring Harness


09 - Microwave Door And Latch


10 - Magnetron And Air Flow


11 - Light, Hinge And Stirrer , Literature

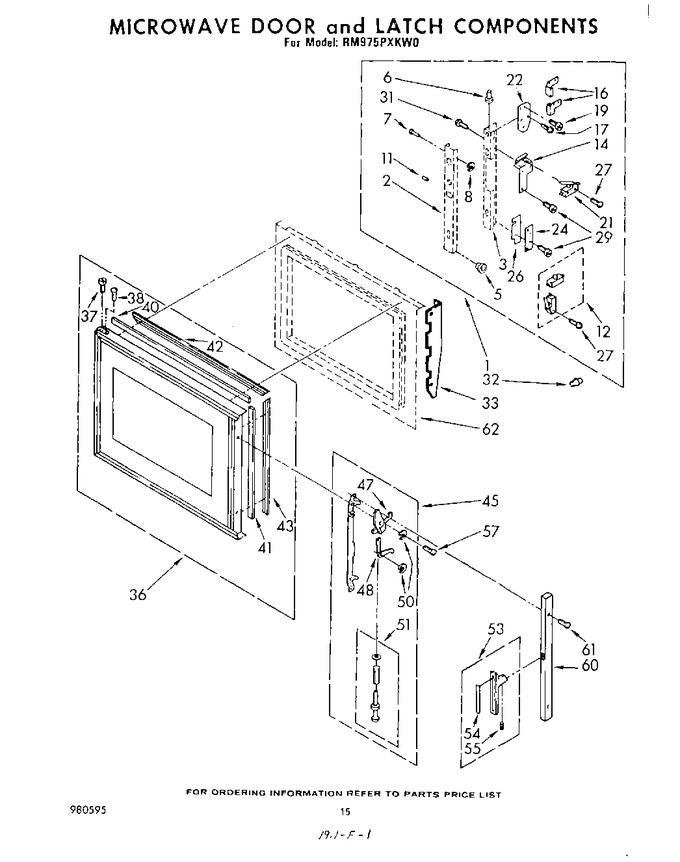

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328919		Interlock Assembly		Appelez-nous	-
5	258666		Spacer (4)		Appelez-nous	-
6	307578		Bumper		Appelez-nous	-
7	307603		Pin, Roller (2)		Appelez-nous	-
8	307605		Ring, Retainer (2)		Appelez-nous	-
11	307612		Pin, Straight		Appelez-nous	-
12	261877		Switch Kit, Door (kit Contains 2 Switches, Both Switches Must Be Replaced If One Fails) (note: Fuse		Appelez-nous	-
14	310148		Bracket, Switch		Appelez-nous	-
16	307611		Insulator, Switch (top)		Appelez-nous	-
17	98106		Screw (2)		Appelez-nous	-
19	310629		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
21	308416		Switch, Secondary		Appelez-nous	-
22	307586		Plate, Top Switch Mounting		Appelez-nous	-
24	307836		Plate, Switch Mounting		Appelez-nous	-
26	307835		Insulator, Switch		Appelez-nous	-
27	98106		Screw (4)		Appelez-nous	-
29	310629		Screw, 8-32 X 3/8 (4)		Appelez-nous	-
31	309080		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
32	311928		Rivet (3)				$ 5.33
33	309963		Shield, Light		Appelez-nous	-
36	329660		Door Assembly		Appelez-nous	-
37	WPW10068250		Screw, 8-32 X 5/16 (2)   (Replaces: 311776)				$ 3.66
38	WPW10068250		Screw, 8-32 X 11/64 (6)   (Replaces: 311777)				$ 3.66
40	311342		Seal, Top & Bottom (2) (alternate)		Appelez-nous	-
40	311634		Seal, Top & Bottom (2) (alternate)		Appelez-nous	-
41	311343		Seal Sides (2) (alternate)		Appelez-nous	-
41	311635		Seal Sides (2) (alternate)		Appelez-nous	-
42	311340		Retainer, Top & Bottom Seals (2)		Appelez-nous	-
43	311341		Retain, Side Seal (2)		Appelez-nous	-
45	328944		Latch, Door		Appelez-nous	-
47	310729		Handle, Cam		Appelez-nous	-
48	307596		Latch, Concealed		Appelez-nous	-
50	308187		Ring, ``e`` (2)		Appelez-nous	-
51	832797		Toggle, Latch		Appelez-nous	-
53	328943		Handle, Door		Appelez-nous	-
54	309564		Insert, Handle		Appelez-nous	-
55	307577		Setscrew, 8-32		Appelez-nous	-
57	WP489128		Xscrew, 8-32 X 7/16 (2)   (Replaces: 310209)				$ 9.79
60	307584		End Cap, Door		Appelez-nous	-
61	310210		Screw, 8-32 X 5/16 (2)		Appelez-nous	-
