Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 309062 Clip ``j`` (4) Appelez-nous -
1 308875 Gusset, R.h. Appelez-nous -
1 308877 Gusset, L.h. Appelez-nous -
1 WP308544 Screw, 10-24 X 1/2 (6)   (Replaces: 308544) In-Stock Immediately $ 6.98

2 WP308544 Screw, 10-24 X 1/2 (2)   (Replaces: 308544) In-Stock Immediately $ 6.98

2 309506 Panel, Bottom Appelez-nous -
2 309100 Screw, 10a X 1/2 (2) Appelez-nous -
3 310803 Socket Assembly, L. H. Appelez-nous -
3 328277 Socket Assembly, R.h. Appelez-nous -
3 246131 Screw, 6a X 3/8 (2) Appelez-nous -
4 308894 Spring, Glass Retainer (4) Appelez-nous -
4 WP965173 Screw, 8a X 3/8 (4)   (Replaces: 246132) In-Stock Immediately $ 9.65

5 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

5 328397 Support, Frame Appelez-nous -
5 WP308544 Screw, 10-24 X 1/2 (2)   (Replaces: 308544) In-Stock Immediately $ 6.98

6 311933 Strap, Support (2) Appelez-nous -
6 WP308544 Screw, 10-24 X 1/2 (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

7 309519 Side Panel L.h. (white) Appelez-nous -
7 308883 Side Panel L.h. (almond) Appelez-nous -
7 308882 Side Panel L.h. (harvest Gold) Appelez-nous -
7 WP308544 Side Panel L.h. (screw 10-24 X 1/2 (6))   (Replaces: 308544) In-Stock Immediately $ 6.98

7 309523 Side Panel L.h. (almond) Appelez-nous -
7 WP488627 Side Panel, L.h. (screw, 8a X 1/2 (2))   (Replaces: 338156) Special Order $ 6.81

7 246134 Side Panel L.h. (screw, 10a X 1/2 (2) Side Panel R.h.) Appelez-nous -
7 308879 Side Panel L.h. (white) Appelez-nous -
7 309522 Side Panel L.h. (harvest Gold) Appelez-nous -
8 308297 Top Panel (seal, Foam) Appelez-nous -
8 WP488627 Top Panel (screw, 8a X 1/2 (8))   (Replaces: 338156) Special Order $ 6.81

8 309513 Panel, Top (almond) Appelez-nous -
8 309512 Top Panel (harvest Gold) Appelez-nous -
8 309509 Panel, Top (white) Appelez-nous -
9 309552 Bushing Appelez-nous -
10 309629 Angle, Side Panel R.h. Appelez-nous -
10 WP965173 Screw, 8a X 3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 9.65

11 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

11 WP308544 Screw, 10-24 X 1/2 (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

11 309454 Bracket, Frame Mounting (3) Appelez-nous -
12 311441 Push Switch Appelez-nous -
13 255912 Nut, 3/8-27 Appelez-nous -
13 309550 Switch, Fluorescent Light Appelez-nous -
14 309455 Bracket, Switch Mounting Appelez-nous -
14 WP308544 Screw, 10-24 X 1/2 (2)   (Replaces: 308544) In-Stock Immediately $ 6.98

15 WP308544 Screw, 10-24 X 1/2 (6)   (Replaces: 308544) In-Stock Immediately $ 6.98

15 308692 Panel, Backguard Appelez-nous -
17 308776 Brace Appelez-nous -
17 WP308544 Screw, 10-24 X 1/2 (2)   (Replaces: 308544) In-Stock Immediately $ 6.98

18 309211 Tube Clip Appelez-nous -
18 309144 Strip, Barrier Appelez-nous -
18 254217 Screw, 10a X 3/8 (3) Appelez-nous -
22 328149 End Trim R.h. (harvest Gold) Appelez-nous -
22 308043 End Trim R.h. (screw, 10-12 X 7/8 (2)) Appelez-nous -
22 310304 End Trim R.h. (screw (2)) Appelez-nous -
22 308980 End Trim R.h. (spacer (2)) Appelez-nous -
22 328154 End Trim R.h. (almond) Appelez-nous -
22 328146 End Trim R.h. (white) Appelez-nous -
22 328150 End Trim R.h. (almond End Trim L.h.) Appelez-nous -
22 328144 End Trim R.h. (harvest Gold) Appelez-nous -
22 328141 End Trim R.h. (white) Appelez-nous -
22 WP308544 End Trim R.h. (screw, 10-24 X 1/2 (6))   (Replaces: 308544) In-Stock Immediately $ 6.98

23 WP488627 308896 Trim, Glass (rear) (screw, 8a X 1/2 (3))   (Replaces: 338156) Special Order $ 6.81

24 WP95292 Lamp, Fluorescent   (Replaces: 95292) In-Stock Immediately $ 121.45

25 328306 Glass Panel Appelez-nous -
26 WP488627 Screw, 8a X 1/2 (3)   (Replaces: 338156) Special Order $ 6.81

26 308897 Trim, Glass (front) Appelez-nous -
27 311953 Bracket, Control Panel Mounting Appelez-nous -
28 WP681414 Screw, 10-16 X 1/2 (5)   (Replaces: 343641) In-Stock Immediately $ 7.07

28 309453 Bracket, Chassis Mounting Appelez-nous -
29 309813 Seal, Foam Appelez-nous -
30 309500 Frame, Outer Appelez-nous -
30 WP488627 Screw, 8a X 1/2 (6)   (Replaces: 338156) Special Order $ 6.81

31 309499 Deflector, Air Appelez-nous -
32 310953 Pushnut, Ziptwist (3) Appelez-nous -
33 308784 Bezel, Switch (2) Appelez-nous -
34 309501 Trim, Top Appelez-nous -
34 309051 Screw, 8a X 3/8 (4) Appelez-nous -
35 WP308544 Screw, 10-24 X 1/2 (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

35 308112 Cover, Rear Appelez-nous -
35 WP681414 Screw, 10-16 X 1/2 (3)   (Replaces: 343641) In-Stock Immediately $ 7.07

36 309507 Rear Cover Appelez-nous -
36 WP681414 Screw, 10-16 X 1\2 (14)   (Replaces: 343641) In-Stock Immediately $ 7.07

37 311931 Seal Foam Appelez-nous -
38 311930 Seal Foam Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

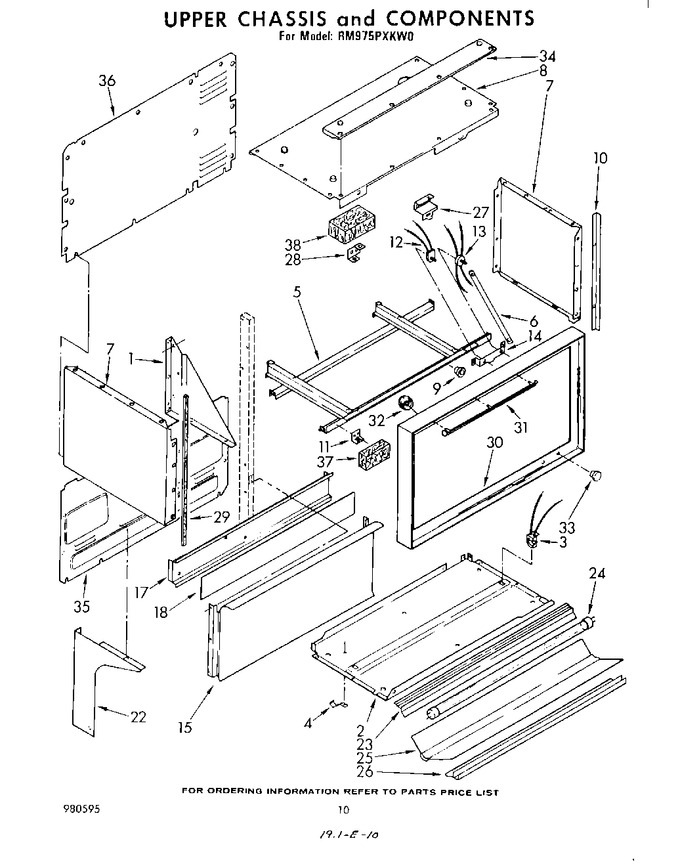

Diagram for RM975PXKW0
