Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 307981 Bracket, Mounting (2) Appelez-nous -
2 307983 Rail L.h. (includes Illus. 3) Appelez-nous -
2 307982 Rail R.h. (includes Illus. 3) Appelez-nous -
2 307748 Screw, 10a X 1/2 (2) Appelez-nous -
3 307979 Glide, Front (2) Appelez-nous -
4 246127 Screw, 10-32 X 5/8 (2) Appelez-nous -
4 WP308180 Unit, Bake (240v) 308180 (alt.) 313827 (alt.)   (Replaces: 661170) Special Order $ 96.92

4 WP312309 Unit, Bake (208v)   (Replaces: 312309) Special Order $ 157.54

5 WP660579 Unit, Broil (240v) 311714 (alt.) 311713 (alt.)   (Replaces: 660579) Special Order $ 140.80

5 246127 Screw, 10-32 X 5/8 (4) Appelez-nous -
5 312308 Unit, Broil (208v) Appelez-nous -
7 WP112432 Nut (6)   (Replaces: 112432) Special Order $ 7.16

7 98884 Screw, 10-16 X 1 (2) Appelez-nous -
7 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

8 308498 Ground Strap Appelez-nous -
8 WP681414 Screw 10-32 X 1/2   (Replaces: 690989) In-Stock Immediately $ 7.07

8 313660 Clip Appelez-nous -
10 307970 Bracket, Service Appelez-nous -
10 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

12 307971 Cover, Rear Appelez-nous -
12 WP681414 Screw, 10-16 X 1/2 (7)   (Replaces: 343641) In-Stock Immediately $ 7.07

13 307972 Cover, Service Appelez-nous -
13 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

14 4396923 Pan, Broiler   (Replaces: 310976) In-Stock Immediately $ 52.04

15 4396923 Rack, Broiler   (Replaces: 258171) In-Stock Immediately $ 52.04

16 308173 Rack, Oven (straight) Appelez-nous -
17 308172 Rack, Oven (offset) Appelez-nous -
18 307748 Screw, 10a X 1/2 (2) Appelez-nous -
18 311982 Plate, Cover (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

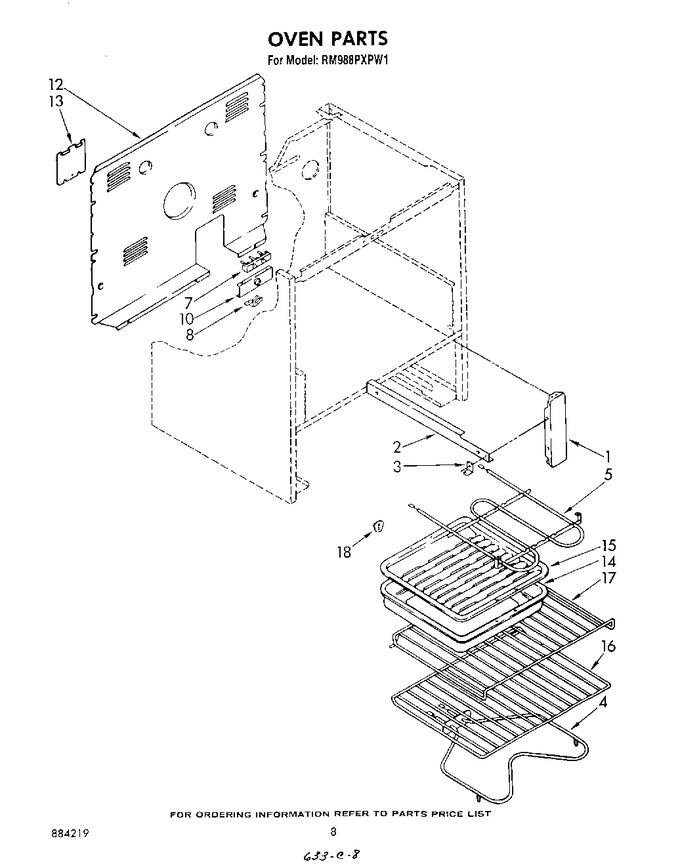

Diagram for RM988PXPW1
