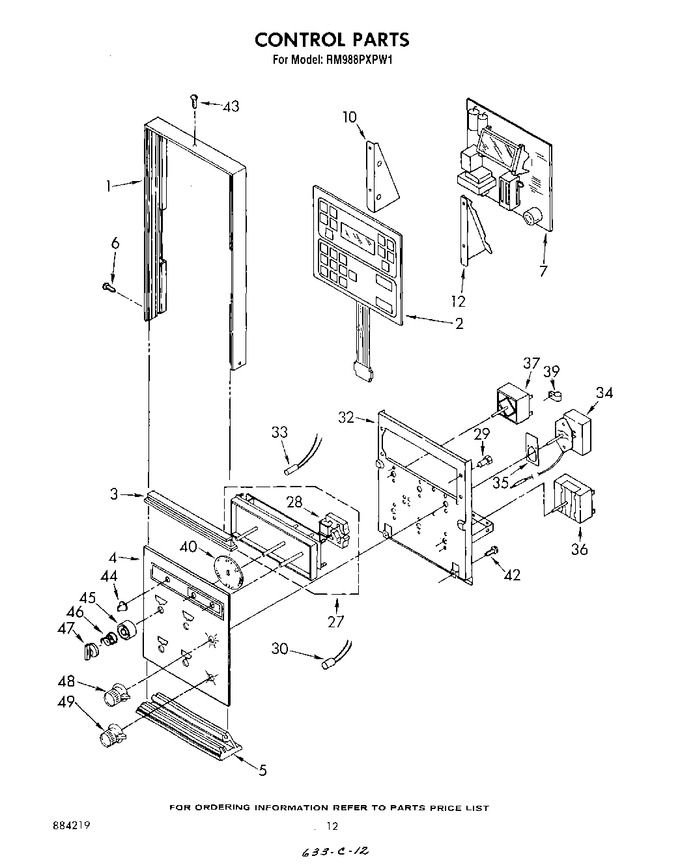

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312602		Frame, Control Panel		Appelez-nous	-
2	313100		Membrane, Switch		Appelez-nous	-
3	312743		Splice Panel		Appelez-nous	-
4	313136		Control Panel, Glass		Appelez-nous	-
4	308297		Seal, Foam		Appelez-nous	-
5	312603		Bottom Cap, Control Panel		Appelez-nous	-
6	348689		Screw, No. 8 (2)				$ 66.92
7	61533		Microcomputer Assembly		Appelez-nous	-
10	313098		Bracket, P.c. Board		Appelez-nous	-
12	313099		Bracket, P.c. Board		Appelez-nous	-
27	309434		Timer, Auto (includes Illus. 28)		Appelez-nous	-
28	308443		Motor, Timer		Appelez-nous	-
29	309645		Nut, Aluminum (4)		Appelez-nous	-
30	313518		Light, Indicator		Appelez-nous	-
32	329791		Bracket, Control Mounting		Appelez-nous	-
32	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
33	313517		Indicator Light 250v (6)		Appelez-nous	-
34	313531		Thermostat, Oven (lower)		Appelez-nous	-
35	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
35	310054		Insulator		Appelez-nous	-
36	310007		Switch, Selector		Appelez-nous	-
36	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
37	308119		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
37	308475		Switch, Infinite (4)		Appelez-nous	-
39	WP965173		Screw, 8a X 3/8 (3)   (Replaces: 246132)			Immediately	$ 9.65
39	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
40	309489		Skirt, Knob (4)		Appelez-nous	-
42	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
43	312248		Screw		Appelez-nous	-
44	313311		Spring, Knob (3)		Appelez-nous	-
44	330206		Knob, Timer (3)		Appelez-nous	-
45	309556		Bezel, Control Knob (4)		Appelez-nous	-
46	308348		Spring, Bezel (4)		Appelez-nous	-
47	313307		Knob, Control (4)				$ 15.94
48	310410		Screw		Appelez-nous	-
48	328709		Knob, Thermostat		Appelez-nous	-
49	328707		Knob, Selector		Appelez-nous	-
49	310410		Screw		Appelez-nous	-
49	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.03
