Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 311354 Bracket, Catch Appelez-nous -
1 312713 Screw, 8-32 X 3/8 Appelez-nous -
2 311795 Catch (2) Appelez-nous -
3 313126 Insulator, Switch Appelez-nous -
4 814037 Switch, Primary Interlock 313077 (alt.) 313125 (alt.)   (Replaces: 661146) Special Order $ 81.32

5 312717 Screw, 4-40 X 5/8 Pan Head Thread Form (6) Appelez-nous -
6 661144 Switch Miniature 313075 (alt.) 313123 (alt.) Appelez-nous -
7 313120 Switch, Door Appelez-nous -
8 310211 Screw, 4-40 X 10 (2) Appelez-nous -
9 309080 Screw, 8-32 X 3/8 Slot Hex Washer Head Self-tapping (ground) Appelez-nous -
10 311360 Shield Appelez-nous -
12 311928 Rivet, Pop (3) Special Order $ 5.33

14 814037 Switch, Secondary Interlock 313077 (alt.) 313125 (alt.)   (Replaces: 661146) Special Order $ 81.32

16 661145 Switch Miniature 313076 (alt.) 313124 (alt.) Appelez-nous -
20 329630 Door Appelez-nous -
21 WPW10068250 Screw, 8-32 X 5/16 Torx Fillister Head Chrome (2)   (Replaces: 311776) Special Order $ 3.66

22 WPW10068250 Screw, 8-32 X 19/32 Torx Truss Head (6)   (Replaces: 311777) Special Order $ 3.66

24 660574 Seal, Top & Bottom (2) 311342 (alt.) 311634 (alt.) Appelez-nous -
25 660575 Seal, Sides 311343 (alt.) 311635 (alt.) Appelez-nous -
26 311340 Retainer, Top & Bottom Seals (2) Appelez-nous -
27 311341 Retain, Side Seal (2) Appelez-nous -
30 329065 Latch Assembly Appelez-nous -
31 311352 Spring, Torsion (2) Appelez-nous -
32 312351 Handle, Door Appelez-nous -
33 312349 Button, Door Handle Appelez-nous -
34 310197 Spring, Compression Appelez-nous -
35 311959 Screw, 8-32 Fillister Head Thread Form Appelez-nous -
37 WP489128 Screw, 8-32 X 7/16 Hex Washer Head Thread Form (3)   (Replaces: 311722) Special Order $ 9.79

38 312350 End Cap Appelez-nous -
40 310210 Screw, 8-32 X 5/16 Thread Form Truss Head (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

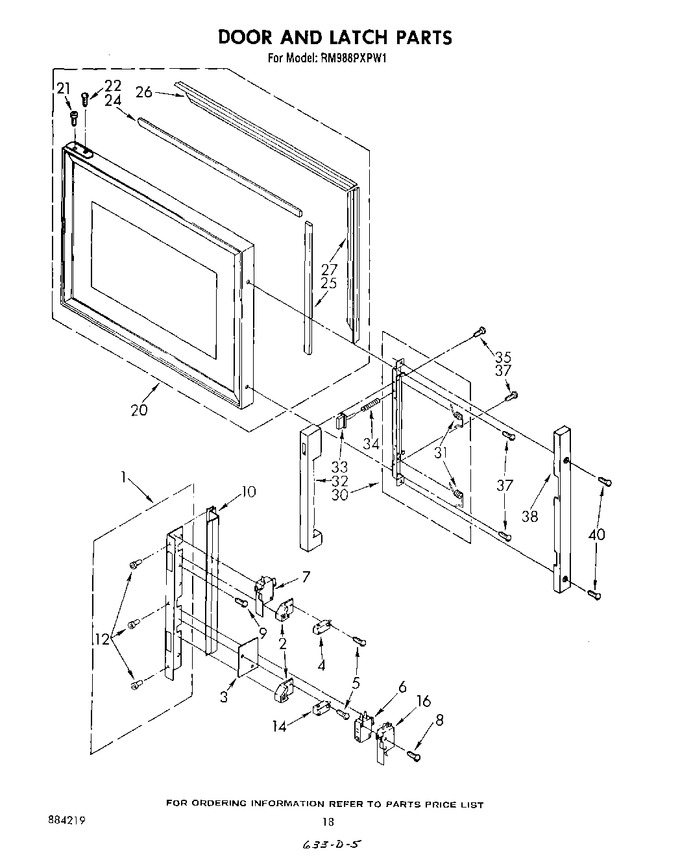

Diagram for RM988PXPW1
