Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 330015 Hinge Assembly (bottom) Appelez-nous -
2 330016 Hinge Assembly (top) Appelez-nous -
4 312147 Washer, Flat Appelez-nous -
5 312744 Hinge, Shim Locking (2) Appelez-nous -
7 312741 Plate, Nut (2) Appelez-nous -
8 312742 Screw, 12-24 X 3/4 (4) Appelez-nous -
9 313456 Rivet (3) Appelez-nous -
10 660561 Shelf, Microwave 311058 (alt.) 312579 (alt.) (install W/silastic No. 482338) Appelez-nous -
11 313501 Seal, Foam Appelez-nous -
19 307519 Socket, Snap-in Appelez-nous -
20 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

21 312713 Screw, 8-32 X 3/8 Appelez-nous -
21 309554 Shield, Lamp Appelez-nous -
30 311286 Support, Shelf Appelez-nous -
32 311318 Shelf, Convenience Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

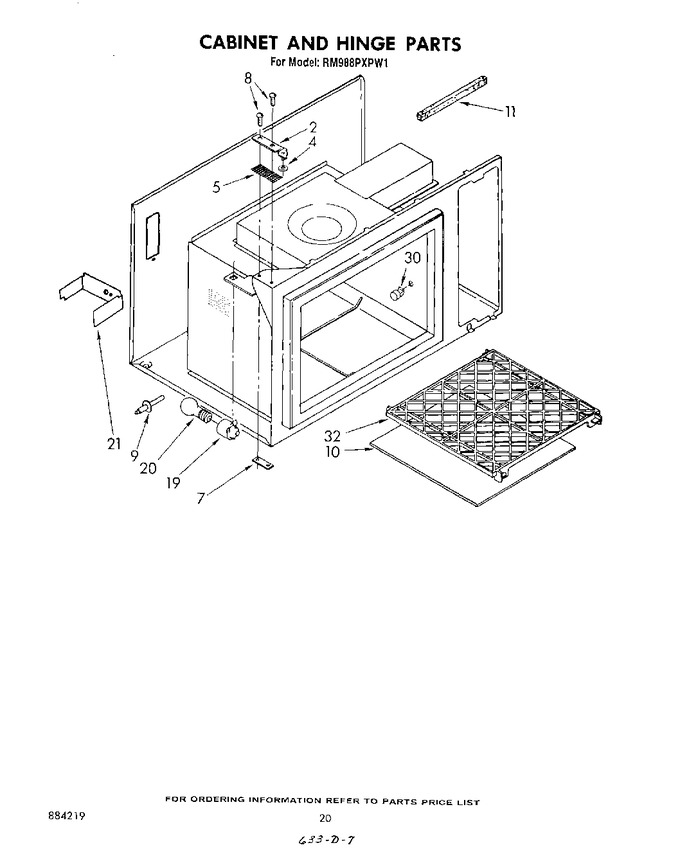

Diagram for RM988PXPW1
