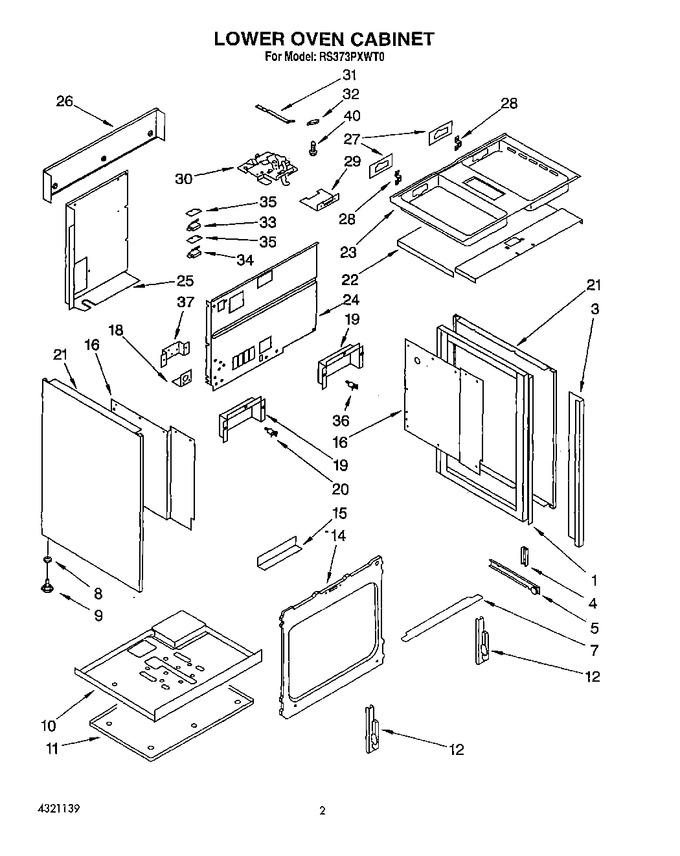

02 - Lower Oven Cabinet


03 - Ventilation, Literature


04 - Maintop And Oven


05 - Optional Electric Grill Module


06 - Optional Electric Coil Module


07 - Optional Solid Element Module


08 - Optional Glass Ceramic Module


09 - Control Panel


10 - Oven Door And Drawer


11 - Electrical Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4315112		Frame, Side (right Side)		Appelez-nous	-
1	4315113		Frame, Side (left Side)		Appelez-nous	-
3	4321011		Trim, Panel Side		Appelez-nous	-
4	4321012		Support, Drawer Track		Appelez-nous	-
5	4321014		Track Drawer (r.h.)		Appelez-nous	-
5	4321013		Track Drawer (l.h.)		Appelez-nous	-
7	4315118		Filler, Front Frame		Appelez-nous	-
8	4157527		Teenut		Appelez-nous	-
9	786602		Leveling Leg		Appelez-nous	-
10	4321015		Retainer, Bottom		Appelez-nous	-
11	4321070		Heat Shield, Drawer		Appelez-nous	-
12	786374		Hinge, Door (r.h.)		Appelez-nous	-
12	786739		Hinge, Door (l.h.)		Appelez-nous	-
14	4157123		Front Frame (not Serviceable)		Appelez-nous	-
15	4315024		Heat Shield, Clock		Appelez-nous	-
16	4321017		Retainer, Insulation Side (l.h.)		Appelez-nous	-
16	4321016		Retainer, Insulation Side (r.h.)		Appelez-nous	-
18	4321018		Bracket, Conduit		Appelez-nous	-
19	4321071		Cover, P.c. Board		Appelez-nous	-
20	4315254		Support, P.c. Board		Appelez-nous	-
21	786376		White		Appelez-nous	-
21	4157015		Panel, Side R.h.		Appelez-nous	-
21	786369		Almond		Appelez-nous	-
21	4314939		Panel, Side L.h.		Appelez-nous	-
21	4321019		Almond		Appelez-nous	-
21	4321134		White		Appelez-nous	-
22	4321020		Retainer, Top		Appelez-nous	-
23	4321072		Burner Box		Appelez-nous	-
24	4321021		Retainer, Rear Insulation		Appelez-nous	-
25	4321022		Cover, Wire Rear		Appelez-nous	-
26	4321023		Shield, Rear		Appelez-nous	-
27	4321024		Mounting Plate, Plug Block		Appelez-nous	-
28	786194		Bracket, Plug Block		Appelez-nous	-
29	786378		Bracket, Mounting Latch		Appelez-nous	-
30	4321025		Latch, Oven Door		Appelez-nous	-
31	4320869		Latch Arm		Appelez-nous	-
32	4320863		Knob Latch		Appelez-nous	-
33	786127		Switch, Latch Upper		Appelez-nous	-
34	786669		Switch, Latch Lower		Appelez-nous	-
35	786380		Insulator, Latch		Appelez-nous	-
36	4321026		Support, Clock P.c. Board		Appelez-nous	-
37	4315273		Bracket, Self-clean		Appelez-nous	-
37	786381		Bracket, Latch		Appelez-nous	-
37	4321073		Bracket, Terminal Board		Appelez-nous	-
40	WPW10068250		Screw, Latch Knob 8-32 X 5/16   (Replaces: 786284)				$ 3.66

    View Diagram in Separate Window       Print Part List
