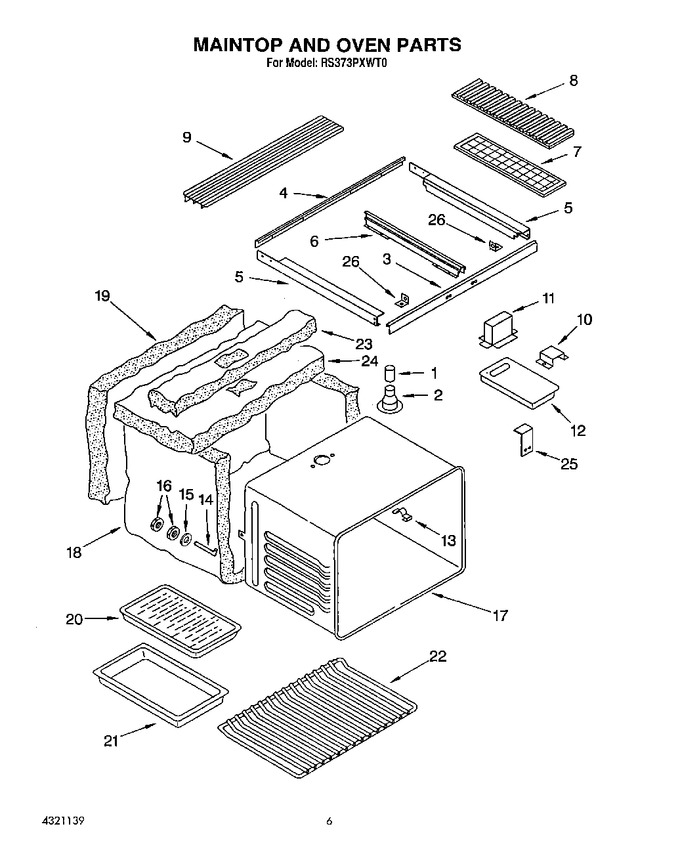

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4315221		Extension, Vent Tube		Appelez-nous	-
2	4320831		Eliminator, Smoke		Appelez-nous	-
3	4320998		Frame, Maintop Front		Appelez-nous	-
4	4321138		Frame, Maintop Rear		Appelez-nous	-
5	4321079		Frame, Maintop (r.h. Side)		Appelez-nous	-
5	4321078		Frame, Maintop (l.h. Side)		Appelez-nous	-
6	4320999		Frame, Maintop Center		Appelez-nous	-
7	4321000		Filter, Exhaust		Appelez-nous	-
8	4321001		Cover, Vent		Appelez-nous	-
9	4321137		Backrail, Lo		Appelez-nous	-
10	4321002		Bracket, Flue Support		Appelez-nous	-
11	330031		Flue Box, Rear   (Replaces: 4321228)			Immediately	$ 14.48
12	4321003		Flue Box		Appelez-nous	-
13	4315098		Cover, Chip		Appelez-nous	-
14	786350		Hook Bolt, Oven Shell		Appelez-nous	-
15	786351		Washer		Appelez-nous	-
16	786352		Nut, Hex 10-32		Appelez-nous	-
17	4321004		Oven Shell		Appelez-nous	-
18	4321005		Insulation, Wrapper		Appelez-nous	-
19	4321004		Insulation, Back		Appelez-nous	-
20	786346		Grid, Broiler		Appelez-nous	-
21	4315109		Pan, Broiler		Appelez-nous	-
22	786347		Oven Rack		Appelez-nous	-
23	4321007		Insulation, Door Latch		Appelez-nous	-
24	4321008		Insulation, Top		Appelez-nous	-
25	4321009		Bracket, Vent Support		Appelez-nous	-
26	4321010		Bracket, Frame Trim		Appelez-nous	-
