02 - Lower Oven Cabinet


03 - Ventilation, Literature


04 - Maintop And Oven


05 - Optional Electric Grill Module


06 - Optional Electric Coil Module


07 - Optional Solid Element Module


08 - Optional Glass Ceramic Module


09 - Control Panel


10 - Oven Door And Drawer


11 - Electrical Oven

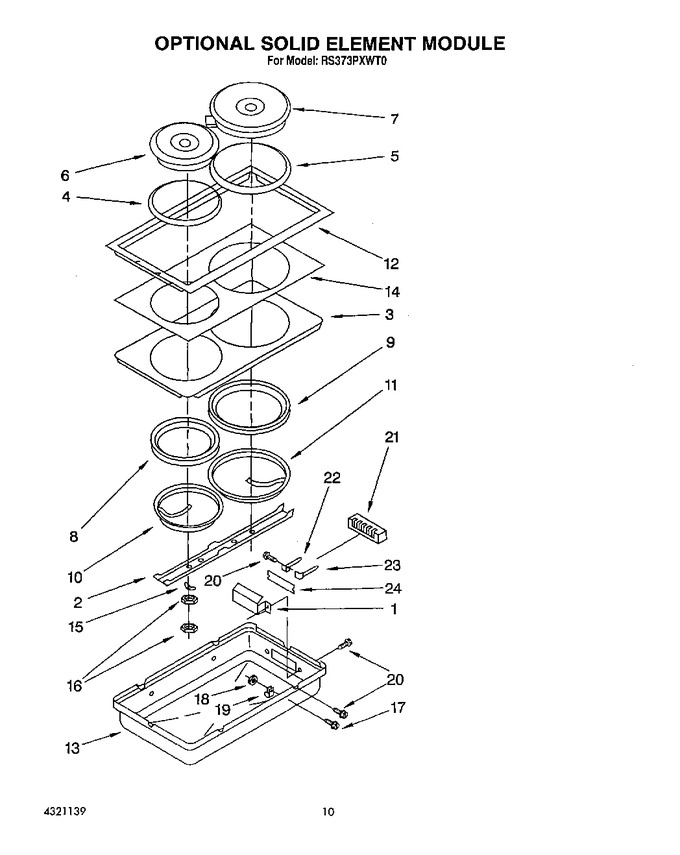

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786707		Bracket, Plug		Appelez-nous	-
2	786708		Bracket, Element		Appelez-nous	-
3	786709		Support, Glass		Appelez-nous	-
4	786710		Ring, Spill (6``)		Appelez-nous	-
5	786711		Ring, Spill (8``)		Appelez-nous	-
6	WP3147131		Element 6``   (Replaces: 786712)				$ 244.76
7	WP3147132		Element 8``   (Replaces: 786713)				$ 272.69
8	786714		Ring, Gasket (6``)		Appelez-nous	-
9	786715		Ring, Gasket (8``)		Appelez-nous	-
10	4320996		Gasket 6``		Appelez-nous	-
11	4320997		Gasket 8``		Appelez-nous	-
12	4321135		Trim, Top-chrome		Appelez-nous	-
13	4321136		Pan Module		Appelez-nous	-
14	786720		Glass, Top-black		Appelez-nous	-
15	786721		Spring, Leaf		Appelez-nous	-
16	786722		Nut, Hex 6mm		Appelez-nous	-
17	786723		Screw, 8-32 X 3/8		Appelez-nous	-
18	WP488130		Nut   (Replaces: 786272)				$ 6.27
19	4157298		Clamp, Wire		Appelez-nous	-
20	786242		Screw, Sq. Drive		Appelez-nous	-
21	786176		Block, Plug		Appelez-nous	-
22	786725		Contact, Power (4)		Appelez-nous	-
23	786726		Contact Ground		Appelez-nous	-
24	786179		Insulator		Appelez-nous	-
