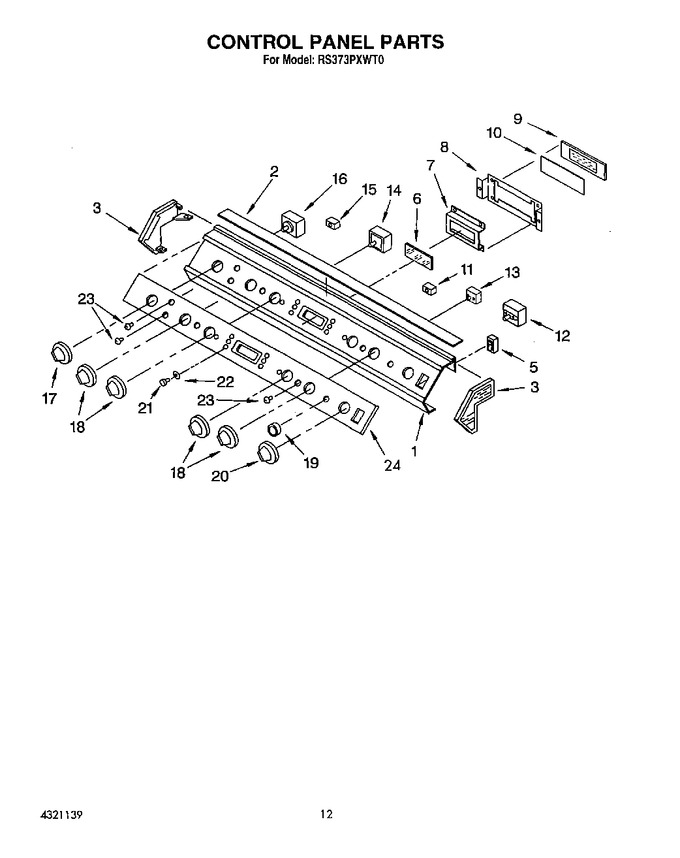

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4321032		Control Panel		Appelez-nous	-
2	4321033		Inlay, Control Panel		Appelez-nous	-
3	4321035		End Cap (left Hand)		Appelez-nous	-
3	4321034		End Cap (right Hand)		Appelez-nous	-
5	WP4314961		Switch, Oven Light   (Replaces: 4320853)				$ 80.53
6	4321036		Glass, Clock		Appelez-nous	-
7	4321037		Bracket, Clock Glass		Appelez-nous	-
8	4321039		Screw, Clock Bracket		Appelez-nous	-
8	4321038		Bracket, Clock		Appelez-nous	-
9	4321040		Clock/timer		Appelez-nous	-
10	4321041		Lens- Clock		Appelez-nous	-
11	4315016		Light, Indicator (3) Indicator (3)		Appelez-nous	-
12	786228		Screw		Appelez-nous	-
12	4321042		Switch, Selector		Appelez-nous	-
13	4321043		Switch, Fan		Appelez-nous	-
13	786245		Screw		Appelez-nous	-
14	W10900107		Switch, Infinite   (Replaces: 4315607)			Immediately	$ 51.87
14	786228		Screw		Appelez-nous	-
15	4315246		Indicator, Light		Appelez-nous	-
16	786228		Screw		Appelez-nous	-
16	4315247		Control, Thermostat		Appelez-nous	-
17	4321044		Knob, Thermostat Control		Appelez-nous	-
18	4321045		Knob, Surface Element		Appelez-nous	-
19	4321046		Knob, Fan Switch		Appelez-nous	-
20	4321047		Knob, Selector		Appelez-nous	-
21	4321048		Button, Clock		Appelez-nous	-
22	4321049		Bushing, Clock Button		Appelez-nous	-
23	4321050		Lens, Indicator Light		Appelez-nous	-
24	4321051		Insert, Control Panel		Appelez-nous	-
