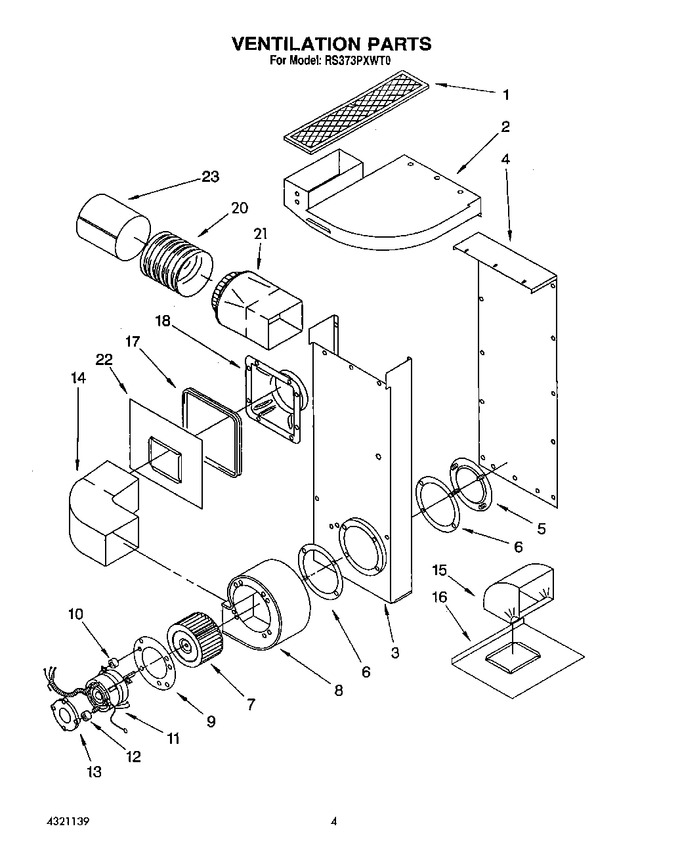

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4321000		Filter		Appelez-nous	-
2	4321053		Plenum Top		Appelez-nous	-
3	4321074		Plenum Rear		Appelez-nous	-
4	4321054		Cover, Plenum Rear		Appelez-nous	-
5	4179324		Orifice		Appelez-nous	-
6	4179303		Gasket, Fan Scroll		Appelez-nous	-
7	786156		Wheel Blower		Appelez-nous	-
8	4321055		Housing Blower		Appelez-nous	-
9	4314921		Plate, Motor Mounting		Appelez-nous	-
10	786234		Grommet, Rubber (3)		Appelez-nous	-
11	4315281		Motor Blower		Appelez-nous	-
12	4314926		Spacer, Motor Cover (4)		Appelez-nous	-
13	4314924		Cover, Motor		Appelez-nous	-
14	4321056		Duct, Wall		Appelez-nous	-
15	4321057		Duct, Floor		Appelez-nous	-
16	4321058		Plate, Duct-floor		Appelez-nous	-
17	4321059		Gasket, Transition Wall-floor		Appelez-nous	-
18	4321060		Transitior, Wall		Appelez-nous	-
20	4321061		Duct Side		Appelez-nous	-
21	786156		Transition, Side		Appelez-nous	-
22	4321062		Plate, Duct Wall		Appelez-nous	-
23	786439		Nut, Blower Motor Mounting (3)		Appelez-nous	-
23	WP488826		Nut, Motor Cover Retainer (4)   (Replaces: 786267)				$ 5.60
23	4314922		Bolt, Blower Motor (3)		Appelez-nous	-
23	4314923		Washer, Blower Motor (3)		Appelez-nous	-
23	4321062		Transitior, Tube		Appelez-nous	-
	LIT4320697		Guide, Use & Care		Appelez-nous	-
	LIT4321139		Repair Parts List		Appelez-nous	-
	LIT4321133		Wiring Diagram		Appelez-nous	-
	LIT4320698		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
