SELECT A DIAGRAM

01 - Body


02 - Body (internal Components)


03 - Control Panel


04 - Door


05 - Fan-convection


06 - Fan-cooling


07 - Oven Liner

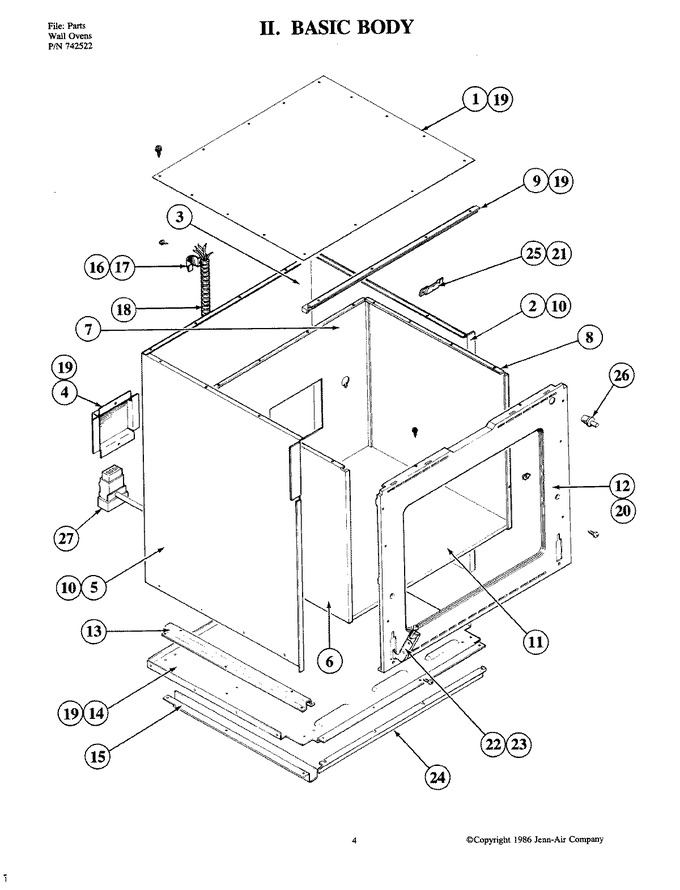

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701681		Top (outer)		Appelez-nous	-
2	701672		Panel, Outer (rt)		Appelez-nous	-
3	701691		Panel, Rear (outer)		Appelez-nous	-
4	702792		Cover, Thermostat		Appelez-nous	-
5	701695		Panel, Outer (lt)		Appelez-nous	-
6	DE81-09195A		Panel, Side (lt)   (Replaces: 701697)				$ 779.04
7	701700		Panel, Back		Appelez-nous	-
8	701676		Panel, Side (rt)		Appelez-nous	-
9	701705		Support, Top		Appelez-nous	-
10	Y700556		Clip, J		Appelez-nous	-
11	DE81-07471A		Panel, Bottom   (Replaces: 701669)				$ 320.80
12	703609		Closure, Front		Appelez-nous	-
13	DE81-06547A		Support, Bottom   (Replaces: 701667)				$ 163.64
13	701701		Angle, Oven Support		Appelez-nous	-
14	701668		Panel, Bottom (outer)		Appelez-nous	-
15	700596		Rail, Bottom		Appelez-nous	-
16	DE81-08030A		Clamp, Conduit   (Replaces: 701692)				$ 131.01
17	WP7101P126-60		Screw   (Replaces: Y708310)			Immediately	$ 6.85
18	DE81-08029A		Harness, Main   (Replaces: 701693)				$ 132.75
19	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
20	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
21	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
22	Y703419		Hinge	1	Appelez-nous	-
23	WP3196183		Screw   (Replaces: Y701664)	1		Immediately	$ 6.98
24	701848		Trim, Oven (lower)	1	Appelez-nous	-
25	701680		Bracket, Vent Tube	1	Appelez-nous	-
26	701666		Switch, Door	1	Appelez-nous	-
27	702812		Thermostat----na	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
