01 - Body

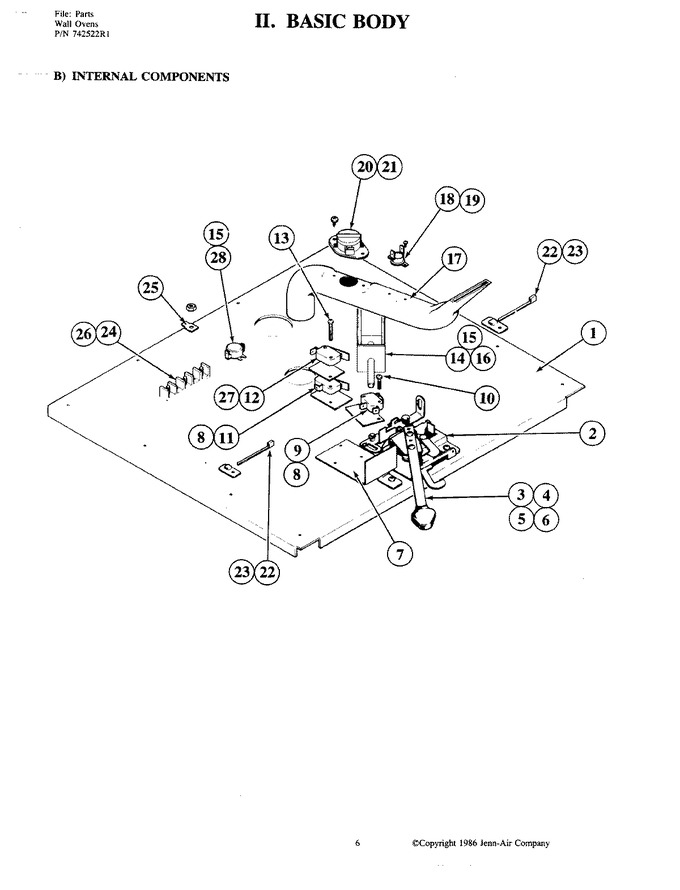

02 - Body (internal Components)
03 - Control Panel
04 - Door
05 - Fan-convection
06 - Fan-cooling
07 - Oven Liner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 703768 | Panel, Top | 1 |
|
- | ||||
| 1 | 704155 | Panel-top | 3 |
|
- | ||||
| 2 | Y703357 | Latch Assy. | 1 |
|
- | ||||
| 3 | Y701690 | Lever, Latch | 1 |
|
- | ||||
| 4 | 707407 | Screw | 1 |
|
$ 6.42 | ||||
| 5 | 701671 | Spring, Knob | 1 |
|
- | ||||
| 6 | 701670 | Knob, Lever | 1 |
|
- | ||||
| 7 | 701706 | Shield, Switch | 1 |
|
- | ||||
| 8 | Y702350 | Insulator | 1 |
|
- | ||||
| 9 | Y702360 | Switch, Solenoid | 1 |
|
- | ||||
| 10 | DE81-04441A | Screw (Replaces: 702380) | 1 |
|
$ 329.62 | ||||
| 11 | 702805 | Switch, Door | 1 |
|
- | ||||
| 12 | 702806 | Switch, Door | 1 |
|
- | ||||
| 13 | 702807 | Screw | 1 |
|
- | ||||
| 14 | 703301 | Cable, Wire | 1 |
|
- | ||||
| 14 | Y702526 | Solenoid | 2 |
|
- | ||||
| 14 | 701685 | Solenoid | 1 |
|
- | ||||
| 15 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 16 | Y701686 | Pin, Cotter | 1 |
|
- | ||||
| 17 | 702795 | Tube, Vent | 1 |
|
- | ||||
| 18 | Y702750 | Limit, Fan | 1 |
|
- | ||||
| 19 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 20 | 702803 | Limit, Thermostat | 1 |
|
- | ||||
| 21 | Y700699 | Screw | 1 |
|
- | ||||
| 22 | WPW10339879 | Tie, Cable (Replaces: Y702105) | 1 |
|
$ 7.11 | ||||
| 23 | 701679 | Tie, Mount Cable | 1 |
|
- | ||||
| 24 | WP8203546 | Block, Terminal (Replaces: Y702284) | 1 |
|
Immediately | $ 27.12 | |||
| 25 | Y702711 | Terminal | 1 |
|
- | ||||
| 26 | DE81-08029A | Harness, Main (Replaces: 701693) | 1 |
|
$ 132.75 | ||||
| 26 | 707161 | Nut | 1 |
|
- | ||||
| 27 | 703264 | Insulator | 1 |
|
- | ||||
| 27 | 703265 | Harness,(two Wires) | 1 |
|
- | ||||
| 28 | 701687 | Thermostat | 1 |
|
- |
