SELECT A DIAGRAM
01 - Body
02 - Body (internal Components)
03 - Control Panel
04 - Door

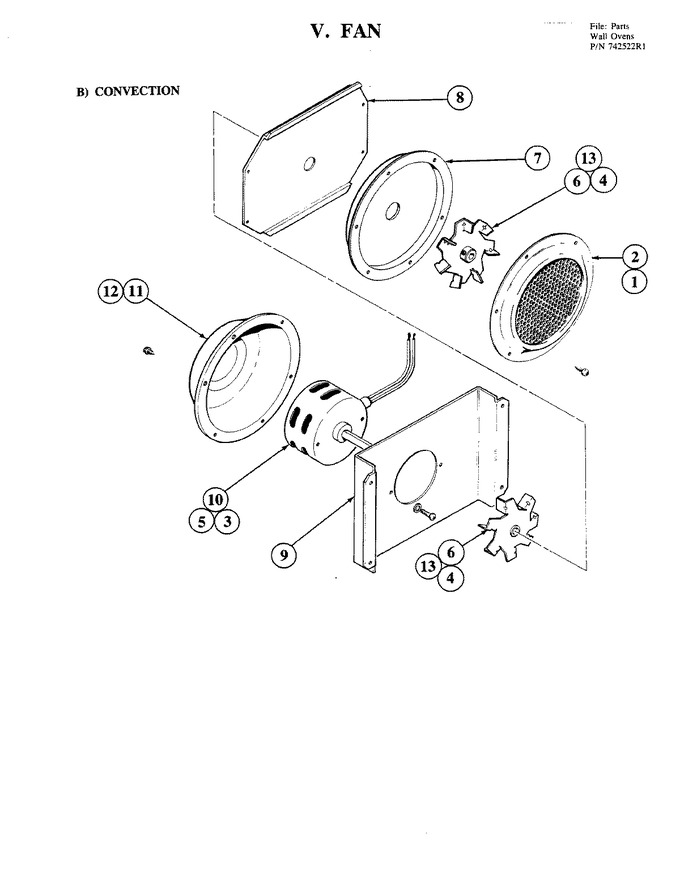

05 - Fan-convection
06 - Fan-cooling
07 - Oven Liner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74003976 | Washer (Replaces: 702592) | 1 |
|
$ 6.47 | ||||
| 1 | WP1163283 | Screw (Replaces: Y703741) | 1 |
|
$ 6.47 | ||||
| 2 | 701707 | Plate, Convection Front | 1 |
|
- | ||||
| 3 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 6.07 | ||||
| 4 | 701709 | Screw, Set | 1 |
|
- | ||||
| 5 | 715910 | Washer, Lock | 1 |
|
- | ||||
| 6 | 701711 | Wheel, Convection | 1 |
|
- | ||||
| 7 | DE81-03744A | Plate, Convection Back (Replaces: 701712) | 1 |
|
$ 312.62 | ||||
| 8 | DE81-03745A | Cover, Motor Front (Replaces: 701713) | 1 |
|
$ 251.40 | ||||
| 9 | Y700601 | Plate, Motor Mount | 1 |
|
- | ||||
| 10 | 701715 | Motor, Convection | 1 |
|
- | ||||
| 11 | 701716 | Cover, Motor | 1 |
|
- | ||||
| 12 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 13 | 701708 | Hub | 1 |
|
- |
