01 - Body
02 - Body (internal Components)
03 - Control Panel
04 - Door
05 - Fan-convection
06 - Fan-cooling
07 - Oven Liner
SELECT A DIAGRAM
New Model Search:

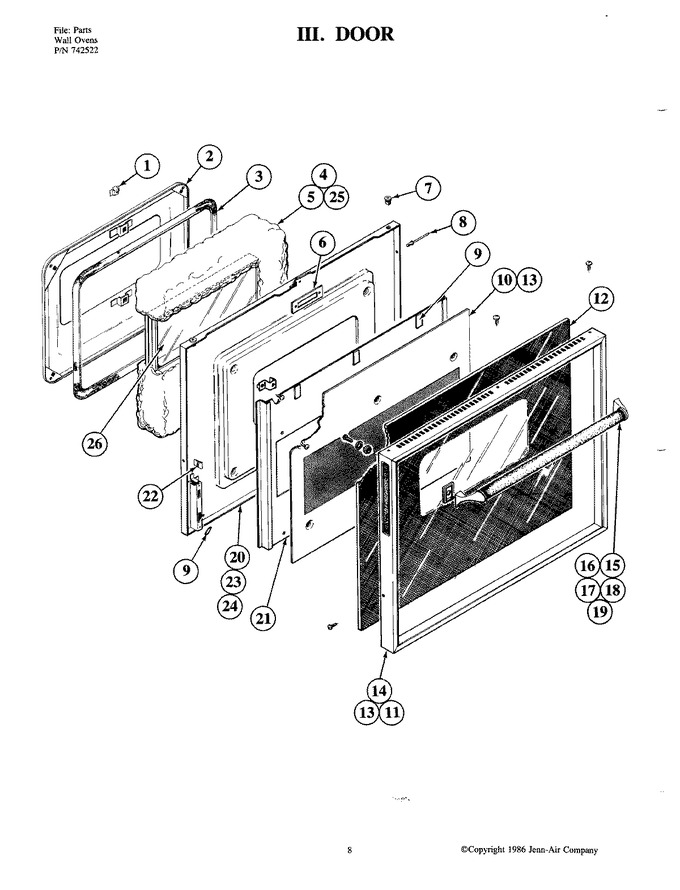

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 2 | Y712174 | Plug | 1 |
|
- | ||||
| 3 | WP701650 | Seal, Oven Door (Replaces: 701650) | 1 |
|
$ 184.62 | ||||
| 4 | 702279 | Insulation-top & Sides | 1 |
|
- | ||||
| 5 | 701658 | Insulation, Bottom | 1 |
|
- | ||||
| 6 | Y712010 | Plate, Latch (upper) | 1 |
|
- | ||||
| 7 | 701643 | Nut, Push In | 1 |
|
- | ||||
| 8 | DE81-07129A | Rivet, Accordion (Replaces: 701641) | 1 |
|
$ 128.48 | ||||
| 9 | 715938 | Pad, Spacer | 1 |
|
- | ||||
| 10 | 701644 | Panel, Perforated | 1 |
|
- | ||||
| 11 | W11233072 | Screw (Replaces: Y708733) | 1 |
|
Immediately | $ 12.62 | |||
| 12 | Y703706 | Glass, Outer | 1 |
|
- | ||||
| 13 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 14 | 703705 | Frame | 1 |
|
- | ||||
| 15 | 703743 | Handle | 1 |
|
- | ||||
| 16 | 703744 | Pad, Mounting | 1 |
|
- | ||||
| 17 | W11164114 | Screw (no.10-24) ----sub (Replaces: Y703532) | 1 |
|
$ 3.76 | ||||
| 18 | Y700446 | Washer | 1 |
|
$ 5.27 | ||||
| 19 | 715939 | Bushing | 1 |
|
- | ||||
| 20 | 712188 | Liner, Door | 1 |
|
- | ||||
| 21 | 11034884 | Baffle, Door (Replaces: 701645) | 1 |
|
$ 93.30 | ||||
| 22 | Y700834 | Clip | 1 |
|
- | ||||
| 23 | WPY706189 | Screw (Replaces: 700906) | 1 |
|
Immediately | $ 6.47 | |||
| 24 | 701652 | Bracket, Stand-off | 1 |
|
- | ||||
| 25 | DE81-08905A | Insulation, Side (Replaces: 701659) | 1 |
|
$ 160.26 | ||||
| 26 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 26 | 701648 | Window Pack | 1 |
|
- |
