01 - Body
02 - Body (internal Components)
03 - Control Panel
04 - Door
05 - Fan-convection
06 - Fan-cooling
07 - Oven Liner
SELECT A DIAGRAM
New Model Search:

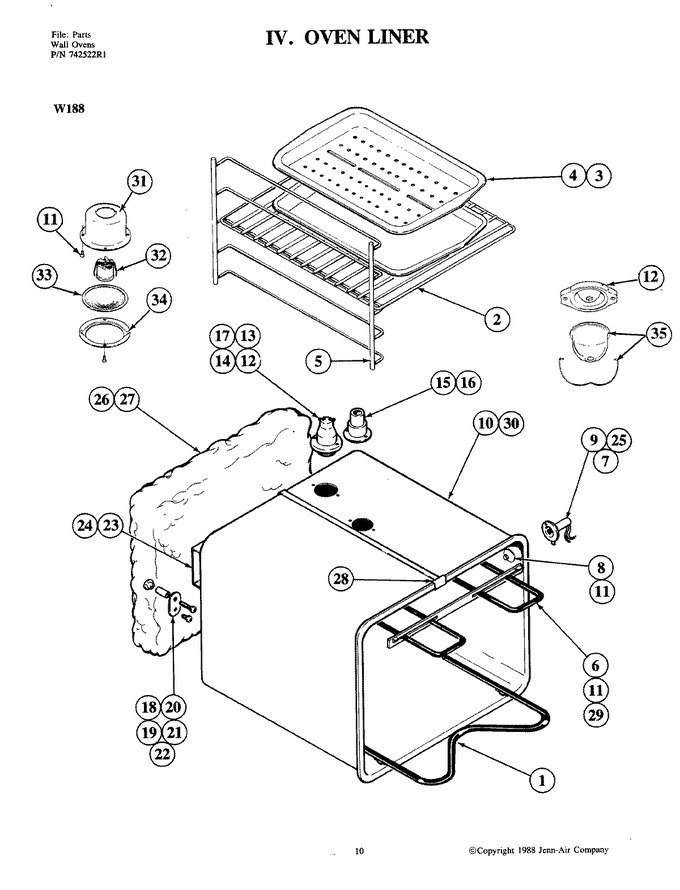

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-08033A | Element, Bake 208v (Replaces: 702039) | 1 |
|
$ 702.77 | ||||
| 1 | WPY04100020 | Element, Bake 240v (Replaces: Y701724) | 1 |
|
Immediately | $ 136.96 | |||
| 2 | Y701725 | Rack, Oven | 1 |
|
- | ||||
| 3 | 4396923 | Pan, Broil (Replaces: 703164) | 1 |
|
Immediately | $ 52.04 | |||
| 4 | 4396923 | Insert, Broil Pan (Replaces: 703165) | 1 |
|
Immediately | $ 52.04 | |||
| 5 | Y701728 | Support, Rack | 1 |
|
- | ||||
| 6 | 702040 | Element, Broil (208v) | 1 |
|
- | ||||
| 6 | WP179051 | Screw (Replaces: 708764) | 1 |
|
Immediately | $ 7.16 | |||
| 6 | WPY04100016 | Element, Broil (Replaces: Y701729) | 1 |
|
$ 137.21 | ||||
| 7 | Y703356 | Nut, Hex 3/8`` | 1 |
|
- | ||||
| 7 | Y701731 | Mount, Meat Probe | 1 |
|
- | ||||
| 7 | 703007 | Standoff | 1 |
|
- | ||||
| 8 | DE81-03805A | Cover (upper) (Replaces: 701732) | 1 |
|
$ 113.65 | ||||
| 9 | Y703022 | Jack, Probe | 1 |
|
- | ||||
| 10 | 712378 | Weld, Oven | 3 |
|
- | ||||
| 10 | 712069 | Weld, Oven | 1 |
|
- | ||||
| 11 | WP1163283 | Screw (Replaces: Y703741) | 1 |
|
$ 6.47 | ||||
| 12 | 715281 | Receptacle, Light | 1 |
|
- | ||||
| 13 | 701736 | Washer | 1 |
|
- | ||||
| 14 | 703773 | Screw | 1 |
|
- | ||||
| 14 | 715485 | Screw | 1 |
|
- | ||||
| 15 | 701738 | Tube, Vent | 1 |
|
- | ||||
| 16 | WPY706189 | Screw (Replaces: 700906) | 1 |
|
Immediately | $ 6.47 | |||
| 17 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 1 |
|
Immediately | $ 16.80 | |||
| 18 | 715294 | Nut, Tee | 1 |
|
- | ||||
| 19 | 701741 | Spacer, Oven | 1 |
|
- | ||||
| 20 | 701742 | Plate, Grounding | 1 |
|
- | ||||
| 21 | WP71001171 | Screw (Replaces: Y707745) | 1 |
|
$ 6.26 | ||||
| 22 | 701744 | Screw | 1 |
|
- | ||||
| 22 | WP71001870 | Probe, Meat (Replaces: Y700884) | 1 |
|
$ 201.71 | ||||
| 23 | 702791 | Bracket | 1 |
|
- | ||||
| 24 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 25 | 703265 | Harness,(two Wires) | 1 |
|
- | ||||
| 26 | 701702 | Insulation, Wrap | 1 |
|
- | ||||
| 27 | 701703 | Insulation, Rear | 1 |
|
- | ||||
| 28 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 28 | Y702618 | Clip, Oven | 1 |
|
- | ||||
| 29 | 702594 | Spacer | 1 |
|
$ 641.16 | ||||
| 30 | 702929 | Button, Plug | 1 |
|
- | ||||
| 31 | 704142 | Receptacle, Holder | 3 |
|
- | ||||
| 32 | Y704145 | Receptacle, Snap-in | 3 |
|
- | ||||
| 33 | Y704143 | Lens, Light | 3 |
|
- | ||||
| 34 | 712282 | Light Lens (kit) | 1 |
|
- | ||||
| 34 | Y704144 | Retainer, Lens | 3 |
|
- |
