01 - Body
02 - Body
03 - Control Panel
04 - Doors
05 - Fan (convection)
06 - Fan (cooling)
07 - Internal Components
SELECT A DIAGRAM
New Model Search:

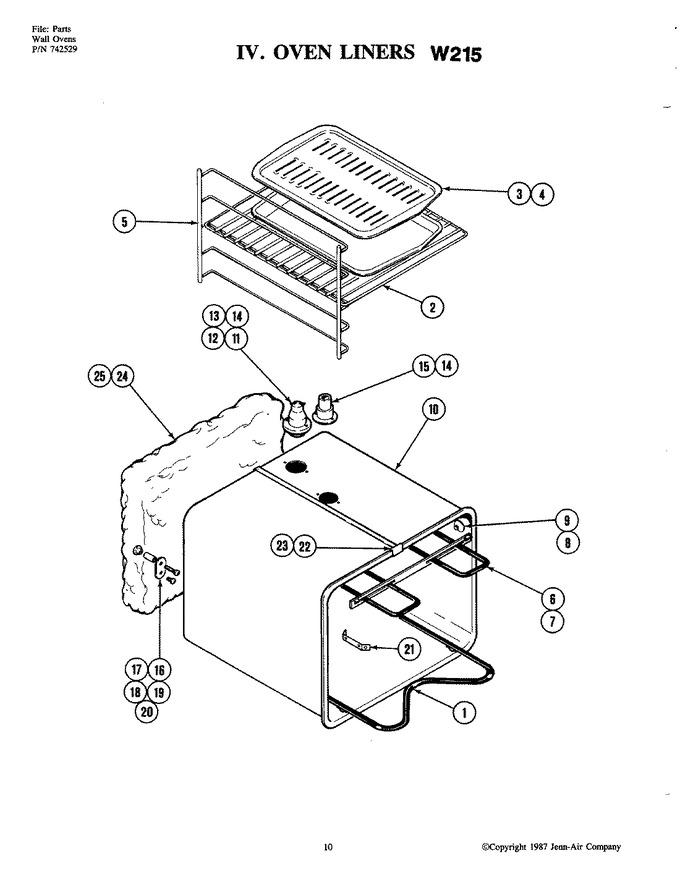

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY04100020 | Element, Bake 240v (Replaces: Y701724) | 1 |
|
Immediately | $ 136.96 | |||
| 2 | Y701725 | Rack, Oven | 1 |
|
- | ||||
| 3 | 4396923 | Rack, Broil Pan (Replaces: Y708811) | 1 |
|
Immediately | $ 52.04 | |||
| 4 | 4396923 | Pan, Broil (Replaces: 708810) | 1 |
|
Immediately | $ 52.04 | |||
| 5 | Y701728 | Support, Rack | 1 |
|
- | ||||
| 6 | WPY04100016 | Element, Broil (Replaces: Y701729) | 1 |
|
$ 137.21 | ||||
| 7 | WP179051 | Screw (Replaces: 708764) | 1 |
|
Immediately | $ 7.16 | |||
| 8 | Y702882 | Screw | 1 |
|
- | ||||
| 9 | 712088 | Cover, Meat Probe | 1 |
|
- | ||||
| 10 | 701733 | Weld, Oven | 1 |
|
- | ||||
| 10 | 712237 | Liner,oven | 1 |
|
- | ||||
| 11 | Y704145 | Receptacle, Snap-in | 1 |
|
- | ||||
| 12 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 1 |
|
Immediately | $ 16.80 | |||
| 13 | 701736 | Washer | 1 |
|
- | ||||
| 14 | 715485 | Screw | 1 |
|
- | ||||
| 15 | 701738 | Tube, Vent | 1 |
|
- | ||||
| 16 | 701742 | Plate, Grounding | 1 |
|
- | ||||
| 17 | 701741 | Spacer, Oven | 1 |
|
- | ||||
| 18 | 715294 | Nut, Tee | 1 |
|
- | ||||
| 19 | WP71001171 | Screw (Replaces: Y707745) | 1 |
|
$ 6.26 | ||||
| 20 | 701744 | Screw | 1 |
|
- | ||||
| 21 | Y701541 | Clip, Bulb | 1 |
|
- | ||||
| 22 | Y702618 | Clip, Oven | 1 |
|
- | ||||
| 23 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 24 | 701703 | Insulation, Rear | 1 |
|
- | ||||
| 25 | 701702 | Insulation, Wrap | 1 |
|
- | ||||
| 25 | 712184 | Eliminator, Smoke (lower) | 1 |
|
- |
