SELECT A DIAGRAM

01 - Body


02 - Body


03 - Control Panel


04 - Doors


05 - Fan (convection)


06 - Fan (cooling)


07 - Internal Components

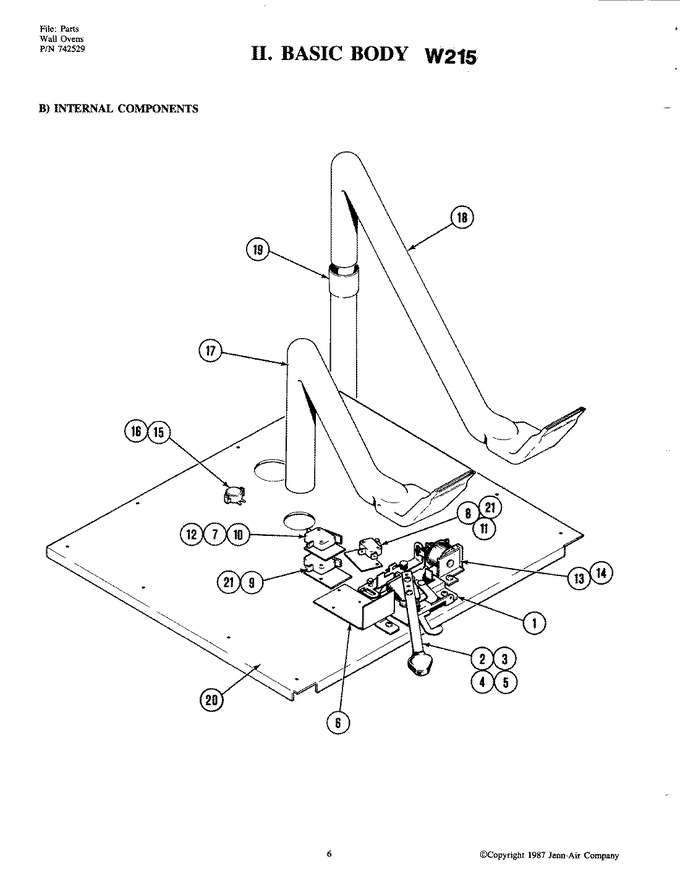

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y703357		Latch Assy.	1-2	Appelez-nous	-
2	Y701690		Lever, Latch	1-2	Appelez-nous	-
3	701670		Knob, Lever	1-2	Appelez-nous	-
4	701671		Spring, Knob	1-2	Appelez-nous	-
5	707407		Screw	1-2			$ 6.42
6	701706		Shield, Switch	1-2	Appelez-nous	-
7	703264		Insulator	1-2	Appelez-nous	-
8	Y702360		Switch, Solenoid	1-2	Appelez-nous	-
9	702805		Switch, Door	1-2	Appelez-nous	-
10	702806		Switch, Door	1-2	Appelez-nous	-
11	712012		Weld, Oven Assy.	1-2	Appelez-nous	-
12	702807		Screw	1-2	Appelez-nous	-
13	701685		Solenoid	1	Appelez-nous	-
13	703301		Cable, Wire	1	Appelez-nous	-
13	Y702526		Solenoid	2	Appelez-nous	-
14	Y701686		Pin, Cotter	1-2	Appelez-nous	-
15	701687		Thermostat	1-2	Appelez-nous	-
15	703259		Limit, Thermostat	1-2	Appelez-nous	-
16	WP12990527		Screw   (Replaces: Y708955)	1-2		Immediately	$ 7.15
17	703066		Tube, Vent Offset (upper)	1-2	Appelez-nous	-
18	703067		Tube, Vent-top (upper)	1-2	Appelez-nous	-
19	703069		Tube, Vent (lower Oven)	1-2	Appelez-nous	-
19	703068		Tube, Vent-rear	1-2	Appelez-nous	-
20	703087		Wire, Gray	1	Appelez-nous	-
20	703768		Panel, Top	1-2	Appelez-nous	-
20	703767		Wire, Gray	2	Appelez-nous	-
21	Y702350		Insulator	1-2	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
