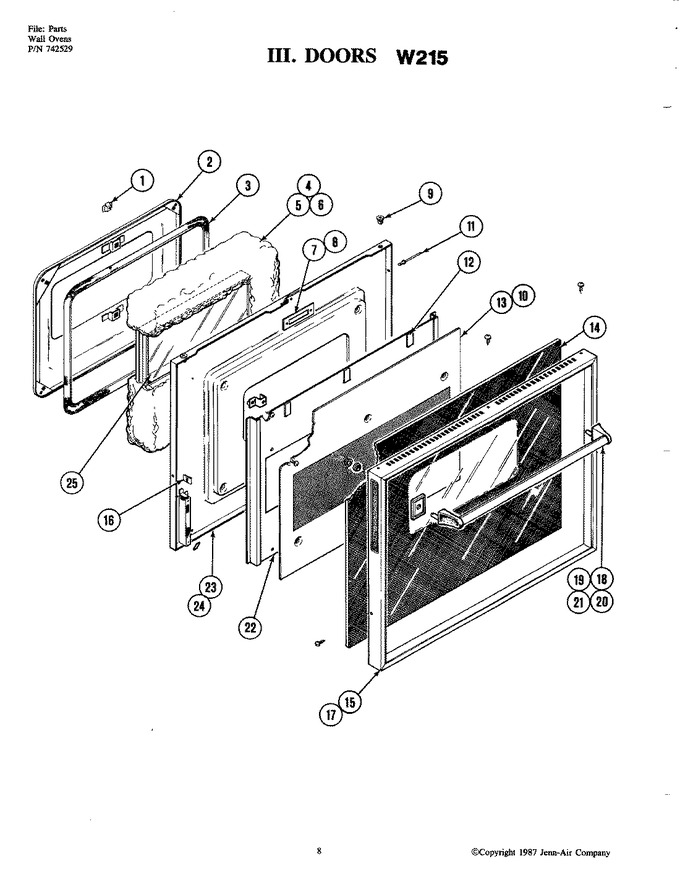

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y700503		Clip, Retainer	1	Appelez-nous	-
2	712209		Plug, Upper	1	Appelez-nous	-
2	Y712208		Plug (lower)	1	Appelez-nous	-
3	WPY702338		Seal (lwr)   (Replaces: Y703611)	1		Immediately	$ 172.53
3	WP701650		Seal, Oven Door   (Replaces: 701650)	1			$ 184.62
4	DE81-08905A		Insulation, Side   (Replaces: 701659)	1			$ 160.26
5	701660		Insulation, Top	1	Appelez-nous	-
6	701658		Insulation, Bottom	1	Appelez-nous	-
7	703275		Plate, Latch (lower)	1	Appelez-nous	-
7	Y712010		Plate, Latch (upper)	1	Appelez-nous	-
8	WP210720		Rivet   (Replaces: Y708088)	1			$ 12.14
9	702657		Nut, Push-in	1	Appelez-nous	-
10	715798		Screw	1	Appelez-nous	-
10	700141		Screw	1	Appelez-nous	-
11	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	1			$ 128.48
12	703613		Spacer, Corner (lwr)	1	Appelez-nous	-
12	W10840861		Pad, Spacer   (Replaces: Y702688)	1			$ 8.89
13	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)	1			$ 54.82
14	Y703706		Glass, Outer	1	Appelez-nous	-
14	703709		Glass (lwr)	1	Appelez-nous	-
15	703705		Frame	1	Appelez-nous	-
16	Y700834		Clip	1	Appelez-nous	-
17	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
18	Y703707		Handle	1	Appelez-nous	-
19	Y703430		Pad, Mounting	1	Appelez-nous	-
20	Y703433		Bushing	1	Appelez-nous	-
21	Y703431		Palnut	1	Appelez-nous	-
22	712250		Baffle	1	Appelez-nous	-
23	712188		Liner, Door	1	Appelez-nous	-
24	701652		Bracket, Stand-off	1	Appelez-nous	-
24	703289		Stand-off Bracket (lower)	1	Appelez-nous	-
25	WPY706189		Screw   (Replaces: 700906)	1		Immediately	$ 6.47
25	703258		Window Pack (lower)	1	Appelez-nous	-
25	701648		Window Pack	1	Appelez-nous	-
