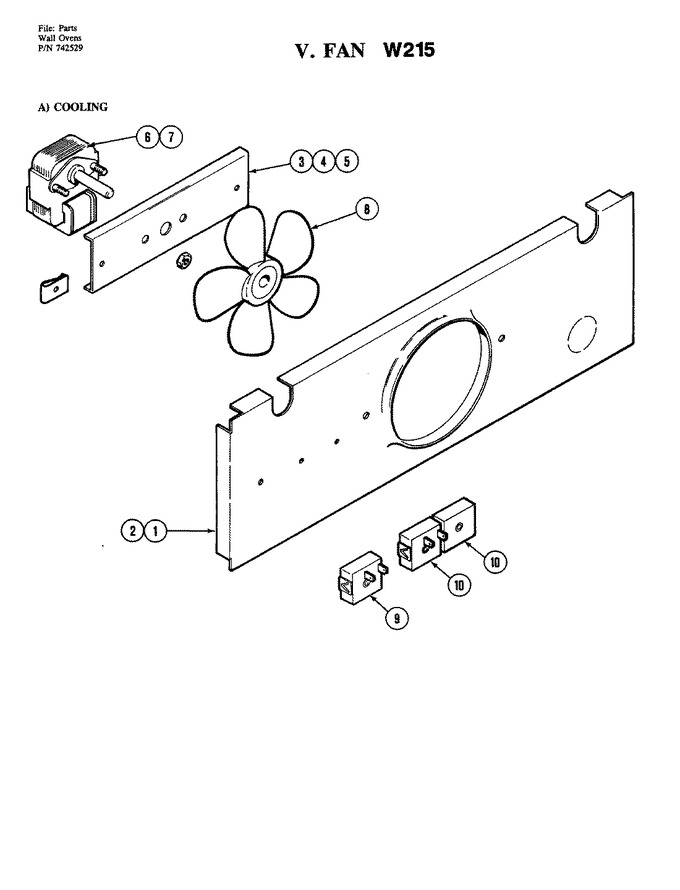

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Body
03 - Control Panel
04 - Doors
05 - Fan (convection)
06 - Fan (cooling)
07 - Internal Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 703096 | Plate, Motor | 1 |
|
- | ||||
| 2 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 3 | Y703570 | Mount, Motor | 1 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 5 | Y700556 | Clip, J | 1 |
|
- | ||||
| 6 | Y701721 | Motor, Fan | 1 |
|
- | ||||
| 7 | M0282005 | Nut,no.6-32 Hex (Replaces: Y707149) | 1 |
|
$ 7.07 | ||||
| 8 | 701718 | Blade, Fan | 1 |
|
- | ||||
| 9 | 701699 | Switch, Bake Cycle | 1 |
|
- | ||||
| 10 | 701698 | Switch, Broil Cycle | 1 |
|
- |
