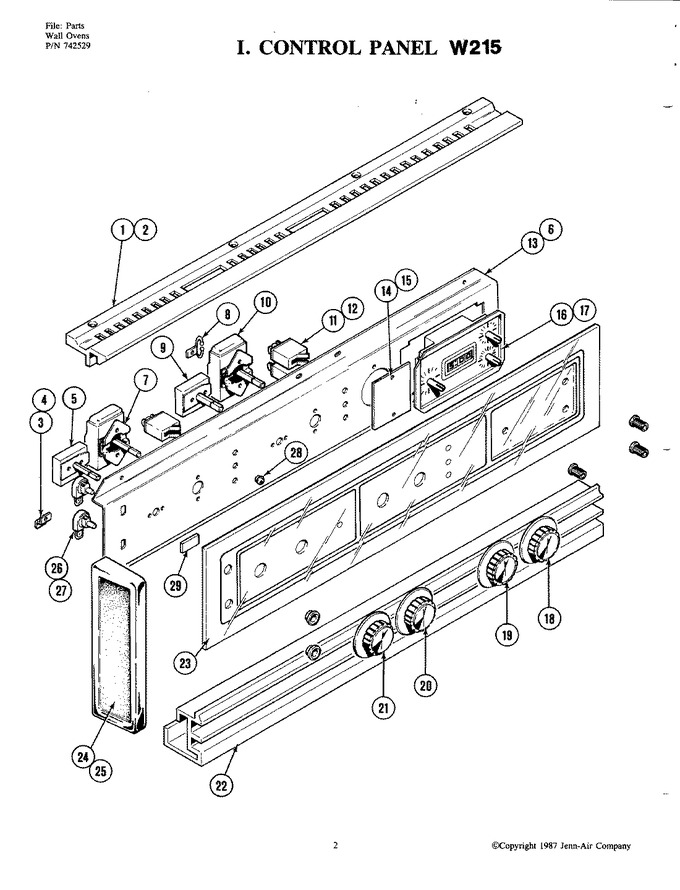

03 - Control Panel


04 - Doors


05 - Fan (convection)


06 - Fan (cooling)


07 - Internal Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	703072		Extrusion, Top	1-3	Appelez-nous	-
2	712066		Screw	1-3	Appelez-nous	-
3	701609		Angle, Attachment	1-3	Appelez-nous	-
4	703280		Harness-wire	1-3	Appelez-nous	-
4	WP12990527		Screw   (Replaces: Y708955)	1-3		Immediately	$ 7.15
5	703079		Selector-lower	1-3	Appelez-nous	-
6	703728		Harness, Oven (upr)	1-3	Appelez-nous	-
6	71002058		Screw   (Replaces: Y702124)	1-3			$ 5.82
7	703081		Thermostat-lower	1-3	Appelez-nous	-
8	702746		Tie, Mount Cable	1-3	Appelez-nous	-
8	WPW10339879		Tie, Cable   (Replaces: Y702105)	1-3			$ 7.11
9	703077		Switch, Selector Upper	1-3	Appelez-nous	-
10	703080		Thermostat-upper	1-3	Appelez-nous	-
11	Y702394		Light, Indicator 240v	1-3	Appelez-nous	-
12	Y702393		Light, Indicator-120v	1-3	Appelez-nous	-
13	703070		Panel, Control	1-3	Appelez-nous	-
14	703277		Plate, Cover	1-3	Appelez-nous	-
15	WP74004005		Screw   (Replaces: Y708359)	1-3			$ 6.95
16	701633		Clock	1-3	Appelez-nous	-
17	Y702547		Knob, Clock	1-3	Appelez-nous	-
18	WPY703499		Knob, Thermostat   (Replaces: 703057)	1-2			$ 43.52
18	WPY703499		Knob, Thermostat   (Replaces: Y703499)	3			$ 43.52
19	DE81-06568A		Knob, Selector-upper   (Replaces: 703502)	3			$ 163.11
19	Y703059		Knob, Selector-upper	1-2	Appelez-nous	-
20	703279		Knob, Thermostat	1-2	Appelez-nous	-
20	DE81-06946A		Knob, Thermostat   (Replaces: 703498)	3			$ 261.98
21	DE81-06566A		Knob, Selector   (Replaces: 703500)	3			$ 132.40
21	703278		Knob, Selector-lower	1-2	Appelez-nous	-
22	703073		Extrusion, Bottom	1-3	Appelez-nous	-
23	703276		Glass	1-3	Appelez-nous	-
24	703136		End Cap (rt-chr)	1-3	Appelez-nous	-
25	DE81-09833A		End Cap (lt-chr)   (Replaces: 703137)	1-3			$ 761.31
26	DE81-08481A		Switch, Push   (Replaces: 701621)	1-3			$ 606.80
27	701610		Bezel, Switch	1-3	Appelez-nous	-
28	Y700630		Lens, Indicator Lights	1-3			$ 4.18
29	DE81-04412A		Wire, Pink   (Replaces: 703090)	1-3			$ 327.97
29	DE81-09159A		Wire, Wire   (Replaces: 703370)	1-3			$ 313.88
29	703089		Wire, Tan	1-3	Appelez-nous	-
29	703290		Wire, Resistor	1-3	Appelez-nous	-
29	703779		Wire, Brown	1-3	Appelez-nous	-
29	DE81-03511A		Pad, Spacer   (Replaces: 701618)	1-3		Immediately	$ 138.07
