Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 766008 Wrap, Cabinet Appelez-nous -
2 766010 Screw Appelez-nous -
3 766011 Gasket Appelez-nous -
4 W11233072 Screw   (Replaces: 766019) In-Stock Immediately $ 12.62

5 766012 Gasket Appelez-nous -
6 WP250830 Screw   (Replaces: 766043) Special Order $ 7.16

7 766009 Cabinet Trim Appelez-nous -
8 766014 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

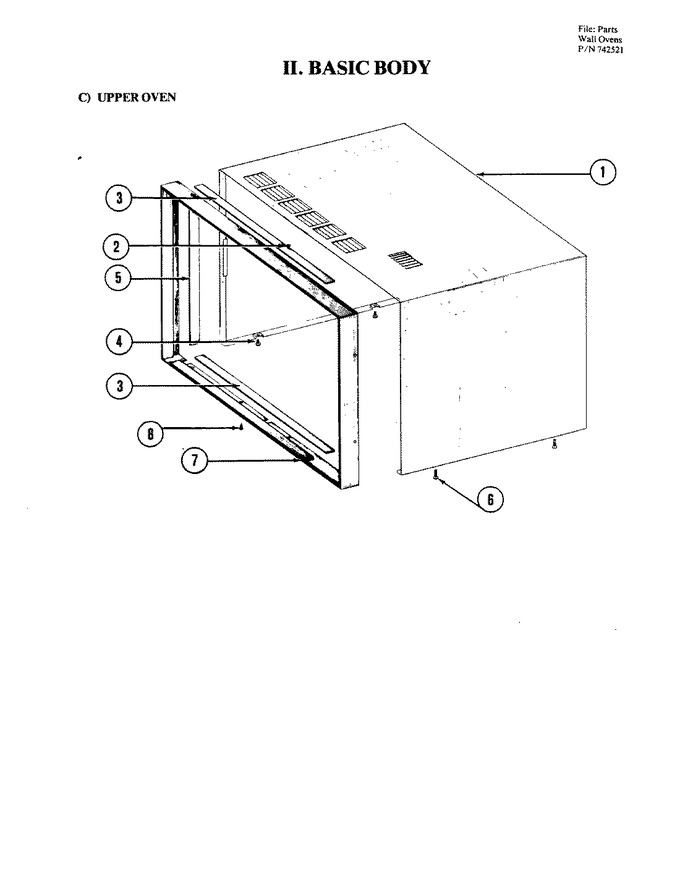

Diagram for W224
