Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP90767 Screw   (Replaces: 715773) In-Stock Immediately $ 7.04

1 Y700556 Clip, J Appelez-nous -
2 Y715957 Foam, Urethane Appelez-nous -
2 DE81-09287A Plate, Motor   (Replaces: 702044) Special Order $ 165.01

3 701718 Blade, Fan Appelez-nous -
4 M0282005 Nut, Hex   (Replaces: 701719) Special Order $ 7.07

5 DE81-07542A Mount, Motor   (Replaces: 701720) Special Order $ 275.66

6 DE81-06991A Lug, Mounting   (Replaces: 701722) Special Order $ 277.58

6 Y701721 Motor, Fan Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

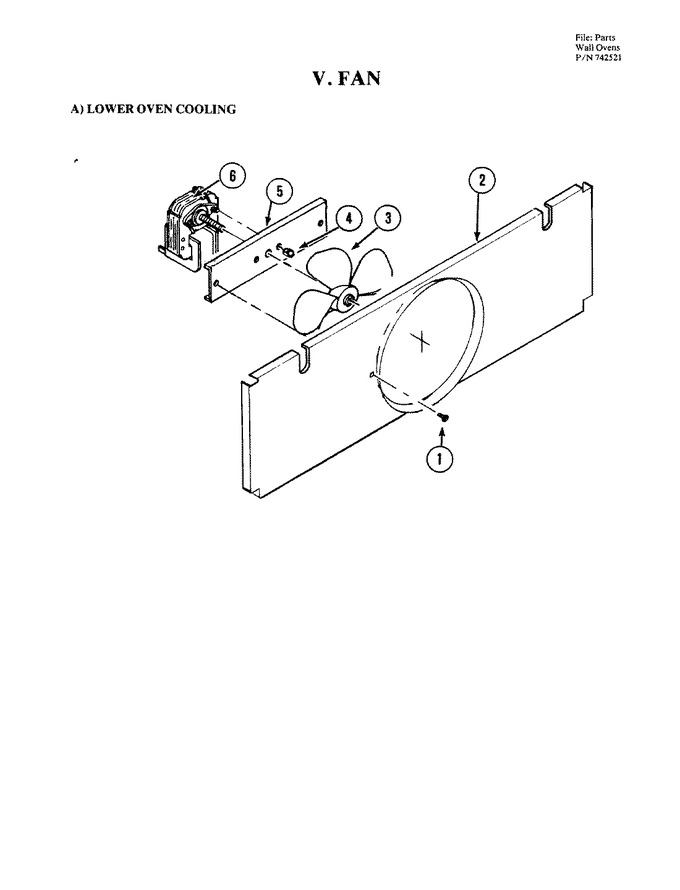

Diagram for W224
