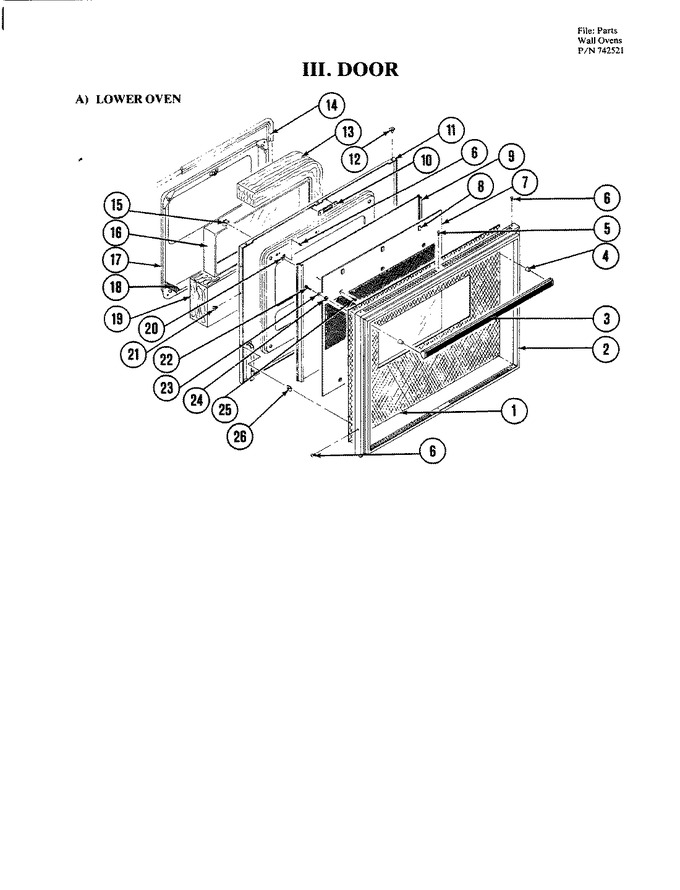

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701642		Glass, Screened		Appelez-nous	-
2	702774		Frame		Appelez-nous	-
3	702930		Handle----na		Appelez-nous	-
4	701832		Post, Mounting		Appelez-nous	-
5	W11233072		Screw   (Replaces: Y708733)			Immediately	$ 12.62
6	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
7	701644		Panel, Perforated		Appelez-nous	-
8	W10840861		Pad, Spacer   (Replaces: Y702688)				$ 8.89
9	11034884		Baffle, Door   (Replaces: 701645)				$ 93.30
10	DE81-10263A		Latch Plate (upper)   (Replaces: 702041)				$ 396.77
10	WP210720		Rivet   (Replaces: 701662)				$ 12.14
11	701647		Liner, Door		Appelez-nous	-
12	701643		Nut, Push In		Appelez-nous	-
13	701658		Insulation, Bottom		Appelez-nous	-
14	WP701650		Seal, Oven Door   (Replaces: 701650)				$ 184.62
15	Y700503		Clip, Retainer		Appelez-nous	-
16	701648		Window Pack		Appelez-nous	-
17	712065		Door Plug		Appelez-nous	-
18	701660		Insulation, Top		Appelez-nous	-
19	DE81-08905A		Insulation, Side   (Replaces: 701659)				$ 160.26
20	701652		Bracket, Stand-off		Appelez-nous	-
21	DE81-07129A		Rivet, Accordion   (Replaces: 701641)				$ 128.48
22	Y700570		Screw		Appelez-nous	-
23	Y700446		Washer				$ 5.27
24	715939		Bushing		Appelez-nous	-
25	WPY706189		Screw   (Replaces: 700906)			Immediately	$ 6.47
26	Y700834		Clip		Appelez-nous	-
26	701149		Locktite (handle)		Appelez-nous	-
