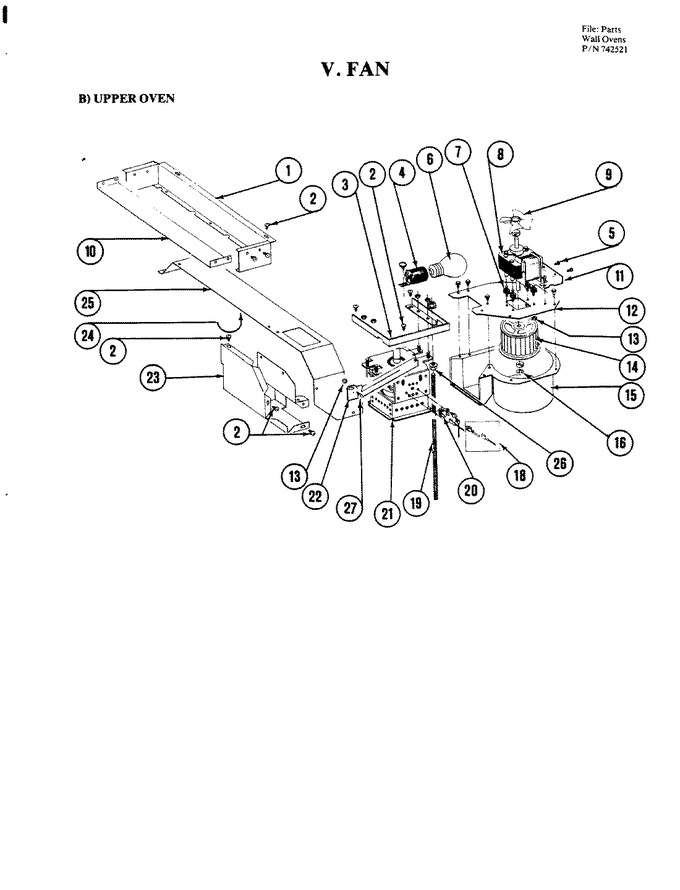

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 766017 | Exhaust Baffle |
|
- | |||||
| 2 | W11233072 | Screw (Replaces: 766019) |
|
Immediately | $ 12.62 | ||||
| 3 | 766098 | Support Bracket |
|
- | |||||
| 4 | 766094 | Receptacle, Light |
|
- | |||||
| 5 | 766101 | Screw |
|
- | |||||
| 6 | 40A15 | Bulb (Replaces: 766096) |
|
Immediately | $ 1.98 | ||||
| 7 | 766104 | Bushing |
|
- | |||||
| 8 | 766103 | Transmotor |
|
- | |||||
| 9 | 766102 | Blade |
|
- | |||||
| 10 | 766144 | Bracket, Baffle |
|
- | |||||
| 11 | 766110 | Blower Housing Bracket |
|
- | |||||
| 12 | 766105 | Cover, Housing |
|
- | |||||
| 13 | 766076 | Nut 8-32 |
|
- | |||||
| 14 | 766107 | Blower Wheel |
|
- | |||||
| 15 | 766109 | Blower Housing |
|
- | |||||
| 16 | 766108 | E Ring |
|
- | |||||
| 17 | 766140 | Screw |
|
- | |||||
| 18 | 766138 | Main Wire Harness |
|
- | |||||
| 18 | 766133 | Control Harness |
|
- | |||||
| 19 | 766141 | Support Rod |
|
- | |||||
| 20 | 766139 | Thermostat |
|
- | |||||
| 21 | 766097 | Magnetron |
|
- | |||||
| 22 | 766111 | Brace |
|
- | |||||
| 23 | 766015 | Exhaust Duct |
|
- | |||||
| 24 | 766146 | Foam |
|
- | |||||
| 25 | 766018 | Exhaust Duct-upper |
|
- | |||||
| 26 | 766089 | Nut Support Rod |
|
- |
