W225 | TransGlobal : Appliance Model Lookup

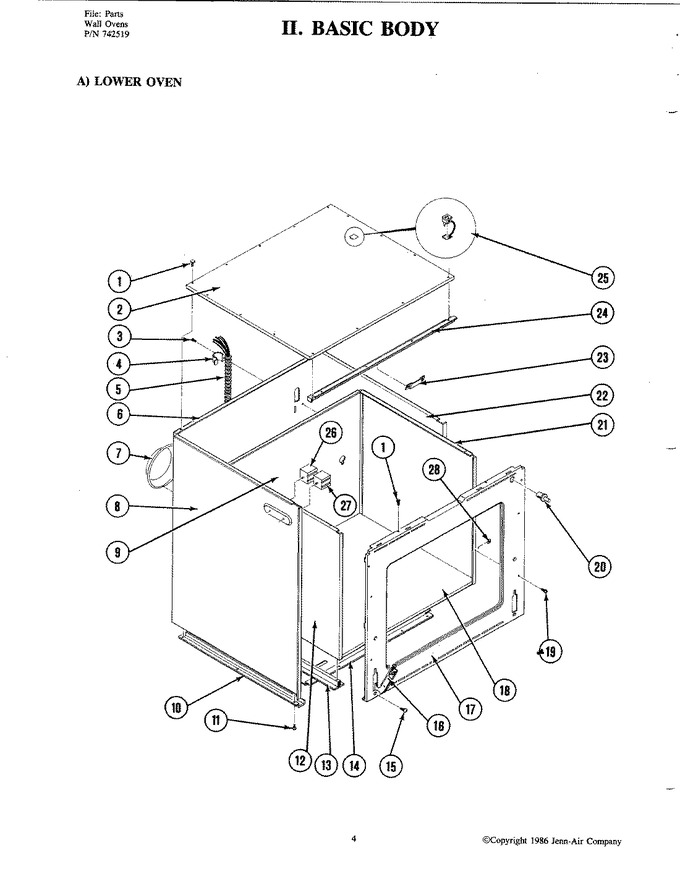

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	WP12990527	Screw (Replaces: Y708955)	1-5		Immediately	$ 7.15
2	701681	Top (outer)	1-5	Appelez-nous	-
3	WP7101P126-60	Screw (Replaces: Y708310)	1-5		Immediately	$ 6.85
4	DE81-08030A	Clamp, Conduit (Replaces: 701692)	1-5			$ 131.01
5	712180	Cable, Wire	1-5	Appelez-nous	-
6	701691	Panel, Rear (outer)	1-5	Appelez-nous	-
8	701695	Panel, Outer (lt)	1-5	Appelez-nous	-
9	701700	Panel, Back	1-5	Appelez-nous	-
10	700596	Rail, Bottom	1-5	Appelez-nous	-
11	W11233072	Screw (Replaces: 701638)	1-5		Immediately	$ 12.62
12	DE81-09195A	Panel, Side (lt) (Replaces: 701697)	1-5			$ 779.04
13	DE81-06547A	Support, Bottom (Replaces: 701667)	1-5			$ 163.64
14	701668	Panel, Bottom (outer)	1-5	Appelez-nous	-
14	701848	Trim, Oven (lower)	1-5	Appelez-nous	-
15	WP3196183	Screw (Replaces: Y701664)	1-5		Immediately	$ 6.98
16	DA81-08981A	Hinge, Door (Replaces: 702112)	1-3			$ 385.18
16	Y703419	Hinge	4-5	Appelez-nous	-
17	701663	Closure, Front	1-3	Appelez-nous	-
17	703609	Closure, Front	4-5	Appelez-nous	-
18	DE81-07471A	Panel, Bottom (Replaces: 701669)	1-5			$ 320.80
19	WP7101P126-60	Screw (Replaces: Y708310)	1-5		Immediately	$ 6.85
20	701666	Switch, Door	1-4	Appelez-nous	-
21	701676	Panel, Side (rt)	1-3	Appelez-nous	-
22	701672	Panel, Outer (rt)	1-3	Appelez-nous	-
23	WP90767	Screw (Replaces: 715773)	1-3		Immediately	$ 7.04
23	701680	Bracket, Vent Tube	1-3	Appelez-nous	-
24	703095	Support, Top	1-3	Appelez-nous	-
25	WP3400029	Nut (Replaces: 712089)	1-3		Immediately	$ 6.98
25	701704	Outlet, Appliance	1-3	Appelez-nous	-
25	WP3196183	Screw (Replaces: Y701664)	1-3		Immediately	$ 6.98
26	701698	Switch, Broil Cycle	1-3	Appelez-nous	-
27	701699	Switch, Bake Cycle	1-3	Appelez-nous	-
28	Y700556	Clip, J	1-3	Appelez-nous	-
