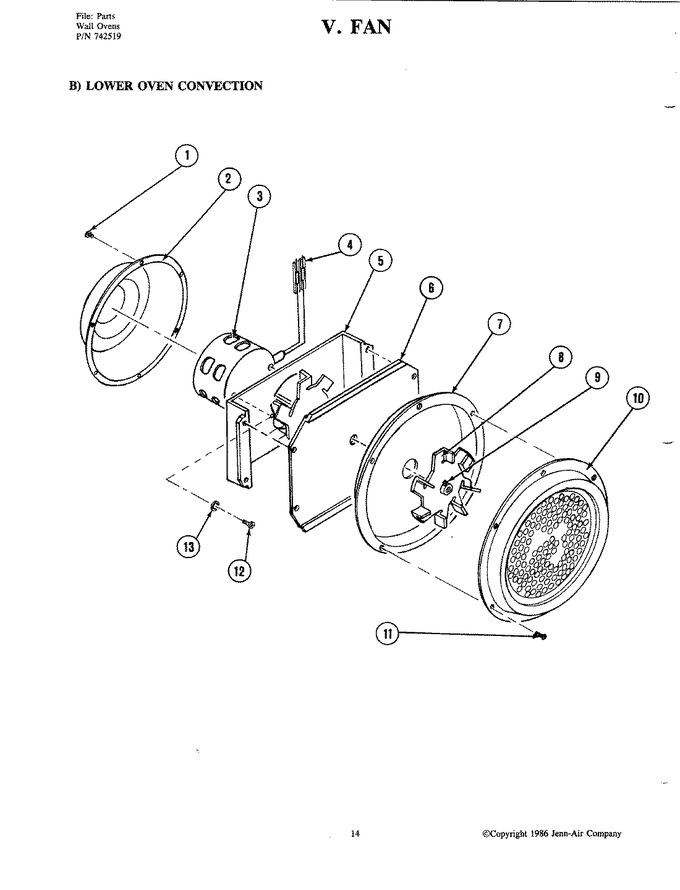

13 - Fan-lower Oven Convection (w225)


14 - Oven Liner-lower (w205)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12990527		Screw   (Replaces: Y708955)	1-2		Immediately	$ 7.15
2	701716		Cover, Motor	1-2	Appelez-nous	-
3	701715		Motor, Convection	1-2	Appelez-nous	-
4	Y715563		Connector, 1/4`` In-line	1-2	Appelez-nous	-
5	Y700601		Plate, Motor Mount	1-2	Appelez-nous	-
6	DE81-03745A		Cover, Motor Front   (Replaces: 701713)	1-2			$ 251.40
7	DE81-03744A		Plate, Convection Back   (Replaces: 701712)	1-2			$ 312.62
8	701711		Wheel, Convection	1-2	Appelez-nous	-
9	701709		Screw, Set	1-2	Appelez-nous	-
10	701707		Plate, Convection Front	1-2	Appelez-nous	-
11	WP74003976		Washer   (Replaces: 702592)	1-2			$ 6.47
11	701526		Screw	1-2	Appelez-nous	-
11	WP1163283		Screw   (Replaces: Y703741)	3-4			$ 6.47
12	WP488234		Screw   (Replaces: 708861)	1-2			$ 6.07
13	715910		Washer, Lock	1-2	Appelez-nous	-
