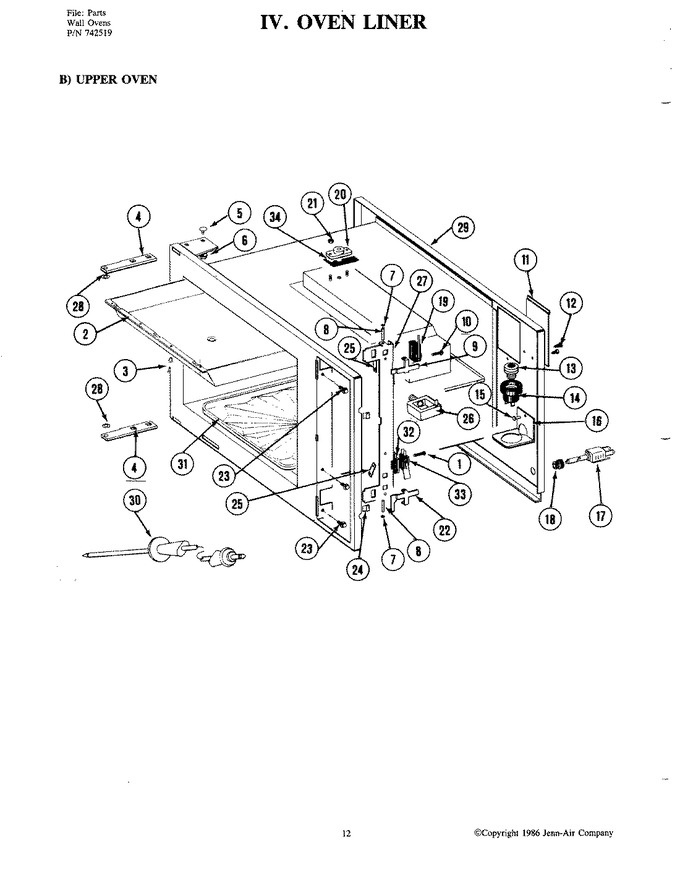

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	766123		Screw	1	Appelez-nous	-
2	766086		Cover	1	Appelez-nous	-
3	766132		Rivet	1	Appelez-nous	-
4	766088		Hinge	1	Appelez-nous	-
5	766263		Screw	1	Appelez-nous	-
6	766089		Nut Support Rod	1	Appelez-nous	-
7	766127		E Ring	1	Appelez-nous	-
8	766129		Pin	1	Appelez-nous	-
9	766125		Actuator Lever	1	Appelez-nous	-
10	766095		Screw	1	Appelez-nous	-
11	766142		Cover	1	Appelez-nous	-
12	W11233072		Screw   (Replaces: 766019)	1		Immediately	$ 12.62
13	766026		Fuse	1	Appelez-nous	-
14	766115		Fuse Holder	1	Appelez-nous	-
15	766116		Rivet	1	Appelez-nous	-
16	766100		Support	1	Appelez-nous	-
17	766066		Cord, Power	1	Appelez-nous	-
18	766130		Strain Relief	1	Appelez-nous	-
19	766124		Secondary Door Switch	1	Appelez-nous	-
20	766186		Bearing, Antenna	1	Appelez-nous	-
21	766091		Nut 4-40	1	Appelez-nous	-
22	766126		Actuator Lever	1	Appelez-nous	-
23	766003		Screw	1	Appelez-nous	-
24	766112		Bracket	1	Appelez-nous	-
25	766044		Plate Switch Nut	1	Appelez-nous	-
26	766156		Nut	1	Appelez-nous	-
26	766172		Receptacle, Probe	1	Appelez-nous	-
27	766128		Bracket, Plate Switch	1	Appelez-nous	-
28	766054		Washer	1	Appelez-nous	-
30	766154		Probe, Temperature	1	Appelez-nous	-
31	766085		Cooking Tray	1	Appelez-nous	-
32	766023		Door Light Switch	1	Appelez-nous	-
33	766024		Safety Switch	1	Appelez-nous	-
34	766179		Gasket	1	Appelez-nous	-
34	766251		Harness-wire	1	Appelez-nous	-
34	766252		Harness-wire	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
