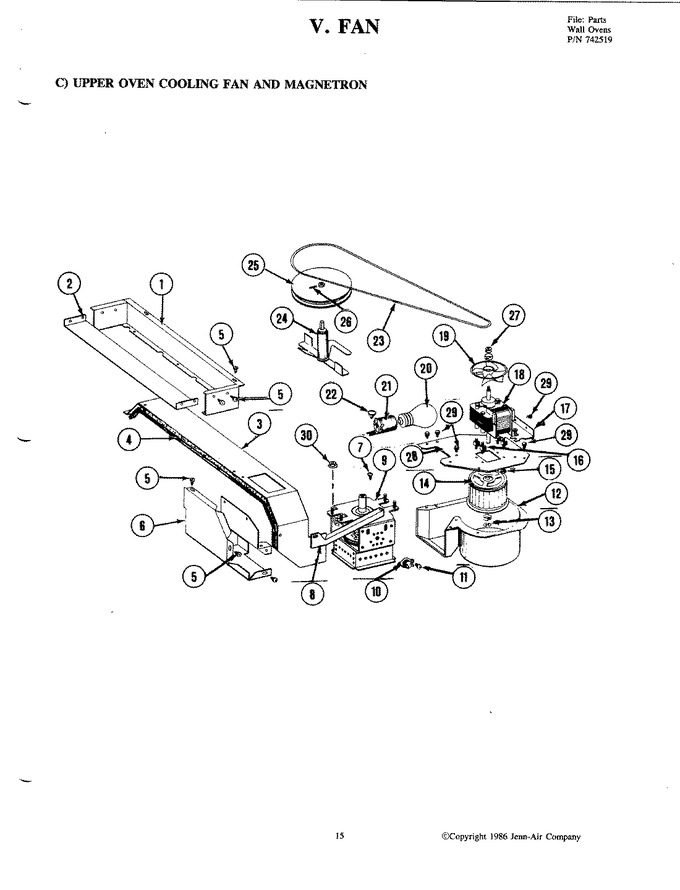

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 766017 | Exhaust Baffle | 1 |
|
- | ||||
| 2 | 766144 | Bracket, Baffle | 1 |
|
- | ||||
| 3 | 766018 | Exhaust Duct-upper | 1 |
|
- | ||||
| 4 | 766146 | Foam | 1 |
|
- | ||||
| 5 | 766014 | Screw | 1 |
|
- | ||||
| 6 | 766015 | Exhaust Duct | 1 |
|
- | ||||
| 7 | WP250830 | Screw (Replaces: 766043) | 1 |
|
$ 7.16 | ||||
| 8 | 766111 | Brace | 1 |
|
- | ||||
| 9 | 766181 | Magnetron | 1 |
|
- | ||||
| 10 | 766139 | Thermostat | 1 |
|
- | ||||
| 11 | 766140 | Screw | 1 |
|
- | ||||
| 12 | 766109 | Blower Housing | 1 |
|
- | ||||
| 13 | 766108 | E Ring | 1 |
|
- | ||||
| 14 | 766107 | Blower Wheel | 1 |
|
- | ||||
| 15 | 766076 | Nut 8-32 | 1 |
|
- | ||||
| 16 | 766104 | Bushing | 1 |
|
- | ||||
| 17 | 766110 | Blower Housing Bracket | 1 |
|
- | ||||
| 18 | 766180 | Motor Blower | 1 |
|
- | ||||
| 19 | 766236 | Blade-motor | 1 |
|
- | ||||
| 20 | 40A15 | Bulb (Replaces: 766096) | 1 |
|
Immediately | $ 1.98 | |||
| 21 | 766094 | Receptacle, Light | 1 |
|
- | ||||
| 22 | W11233072 | Screw (Replaces: 766019) | 1 |
|
Immediately | $ 12.62 | |||
| 23 | 766177 | Belt, Antenna | 1 |
|
- | ||||
| 24 | 766185 | Antenna Assembly | 1 |
|
- | ||||
| 25 | 766186 | Bearing, Antenna | 1 |
|
- | ||||
| 25 | 766187 | Pulley, Antenna | 1 |
|
- | ||||
| 26 | 766257 | Cotter Key | 1 |
|
- | ||||
| 27 | 766188 | Pulley-motor | 1 |
|
- | ||||
| 28 | 766105 | Cover, Housing | 1 |
|
- | ||||
| 29 | 766101 | Screw | 1 |
|
- | ||||
| 30 | 766089 | Nut Support Rod | 1 |
|
- |
