SELECT A DIAGRAM

01 - Basic Body-lower Oven (w205)

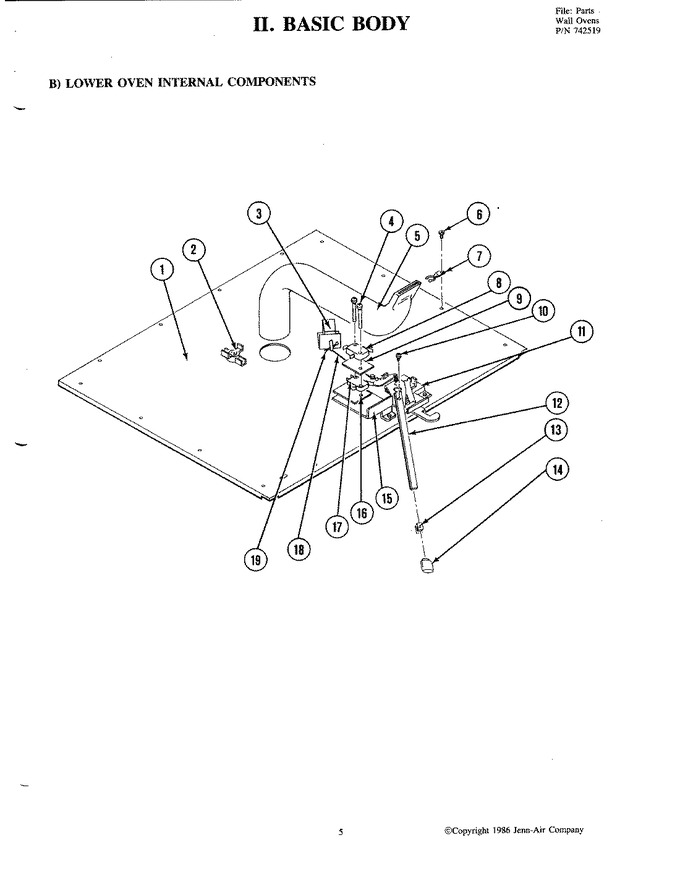

02 - Basic Body-lower Oven/internal (w205)


03 - Body


04 - Body (upper)


05 - Body (upper)


06 - Body (upper)


07 - Control Panel (lower W205)


08 - Control Panel (upper)


09 - Door (lower W205)


10 - Door (upper)


11 - Fan (lower Cooling)


12 - Fan (upper Cooling & Magnetron)


13 - Fan-lower Oven Convection (w225)


14 - Oven Liner-lower (w205)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701674		Panel, Inner	1-3	Appelez-nous	-
1	703768		Panel, Top	4	Appelez-nous	-
2	WP74004005		Screw   (Replaces: 707365)	1-3			$ 6.95
2	WP74004005		Screw   (Replaces: Y700929)	4			$ 6.95
3	701685		Solenoid	1-3	Appelez-nous	-
3	Y702526		Solenoid	4	Appelez-nous	-
4	701677		Screw	1-3	Appelez-nous	-
5	701684		Tube, Vent	1-4	Appelez-nous	-
6	WP12990527		Screw   (Replaces: Y708955)	1-6		Immediately	$ 7.15
7	702746		Tie, Mount Cable	1-6	Appelez-nous	-
8	701689		Switch, Door Latch	1-3	Appelez-nous	-
8	702806		Switch, Door	4	Appelez-nous	-
9	712086		Insulator, Switch	1-3	Appelez-nous	-
9	712086		Insulator, Switch	1-2	Appelez-nous	-
9	703264		Insulator	3-6	Appelez-nous	-
9	703264		Insulator	4	Appelez-nous	-
10	707407		Screw	1-6			$ 6.42
11	Y703357		Latch Assy.	4	Appelez-nous	-
11	701673		Latch	1-2	Appelez-nous	-
11	701673		Latch	1-3	Appelez-nous	-
11	Y703357		Latch Assy.	3-6	Appelez-nous	-
12	Y701690		Lever, Latch	1-6	Appelez-nous	-
13	701671		Spring, Knob	1-6	Appelez-nous	-
14	701670		Knob, Lever	1-6	Appelez-nous	-
15	701706		Shield, Switch	1-6	Appelez-nous	-
16	Y702350		Insulator	3-5	Appelez-nous	-
17	702805		Switch, Door	3-5	Appelez-nous	-
18	703301		Cable, Wire	3-5	Appelez-nous	-
18	703301		Cable, Wire	4	Appelez-nous	-
18	701688		Cable, Solenoid	1-3	Appelez-nous	-
19	Y701686		Pin, Cotter	1-6	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
