Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 701681 Top (outer) 01 Appelez-nous -
2 WP12990527 Screw   (Replaces: Y708955) 01 In-Stock Immediately $ 7.15

3 703095 Support, Top 01 Appelez-nous -
4 701680 Bracket, Vent Tube 01 Appelez-nous -
5 703551 Cover, Motor Opening 01 Appelez-nous -
6 WP90767 Screw   (Replaces: 715773) 01 In-Stock Immediately $ 7.04

7 701672 Panel, Outer (rt) 01 Appelez-nous -
8 701676 Panel, Side (rt) 01 Appelez-nous -
9 WPW10068250 Screw   (Replaces: Y700582) 01 Special Order $ 3.66

9 DE81-06242A Spacer, Side   (Replaces: 703253) 01 Special Order $ 284.36

9 703609 Closure, Front 01 Appelez-nous -
10 W11233072 Screw   (Replaces: Y708733) 01 In-Stock Immediately $ 12.62

11 DE81-07471A Panel, Bottom   (Replaces: 701669) 01 Special Order $ 320.80

12 Y703419 Hinge 01 Appelez-nous -
13 WP3196183 Screw   (Replaces: Y701664) 01 In-Stock Immediately $ 6.98

14 701666 Switch, Door 01 Appelez-nous -
14 712209 Plug, Upper 01 Appelez-nous -
15 704642 Trim, Oven (lwr-blk) 01 Appelez-nous -
16 DE81-09195A Panel, Side (lt)   (Replaces: 701697) 01 Special Order $ 779.04

17 700596 Rail, Bottom 01 Appelez-nous -
18 701668 Panel, Bottom (outer) 01 Appelez-nous -
19 701695 Panel, Outer (lt) 01 Appelez-nous -
20 DE81-06547A Support, Bottom   (Replaces: 701667) 01 Special Order $ 163.64

21 704808 Panel, Rear 01 Appelez-nous -
22 Y700556 Clip, J 01 Appelez-nous -
23 712180 Cable, Wire 01 Appelez-nous -
24 DE81-08030A Clamp, Conduit   (Replaces: 701692) 01 Special Order $ 131.01

25 WP7101P126-60 Screw   (Replaces: Y708310) 01 In-Stock Immediately $ 6.85

26 701691 Panel, Rear (outer) 01 Appelez-nous -
26 WP71001171 Screw, Ground   (Replaces: Y703817) 01 Special Order $ 6.26

26 701701 Angle, Oven Support 01 Appelez-nous -
26 Y703352 Grommet, Flexible 01 Appelez-nous -
26 701683 Bracket, Hat (rear) 01 Appelez-nous -
27 701704 Outlet, Appliance 01 Appelez-nous -

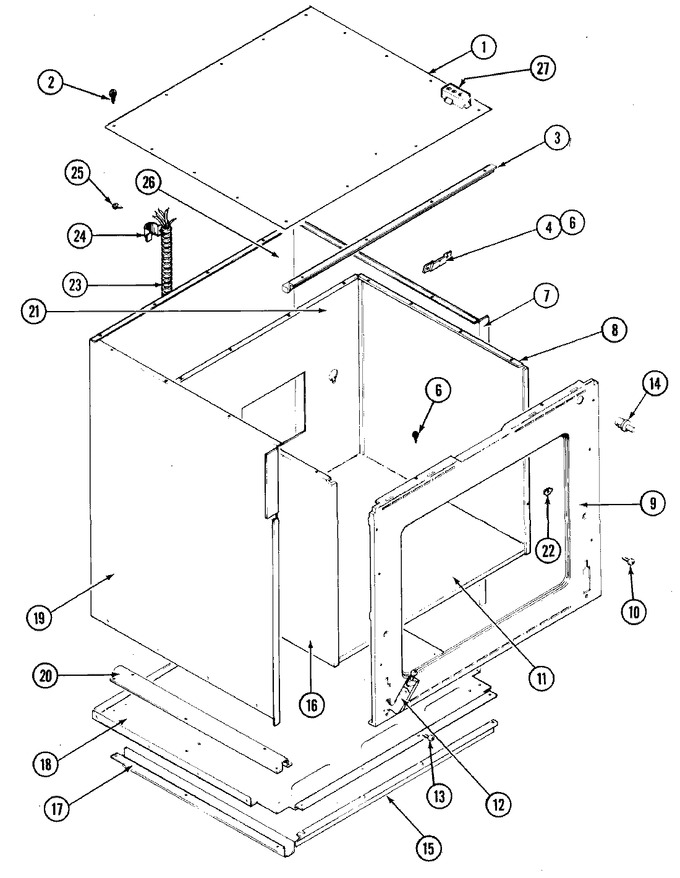

    View Diagram in Separate Window     Print Icon   Print Part List
