SELECT A DIAGRAM

01 - Blower Motor (convection)


02 - Blower Motor (cooling Fan Upper)


03 - Blower Motor (cooling)


04 - Body (lower)


05 - Body (upper)


06 - Control Panel (upper)


07 - Door (lower)


08 - Door (upper)


09 - Internal Controls (lower)


10 - Internal Controls (upper)


11 - Microwave Trim


12 - Oven (lower)

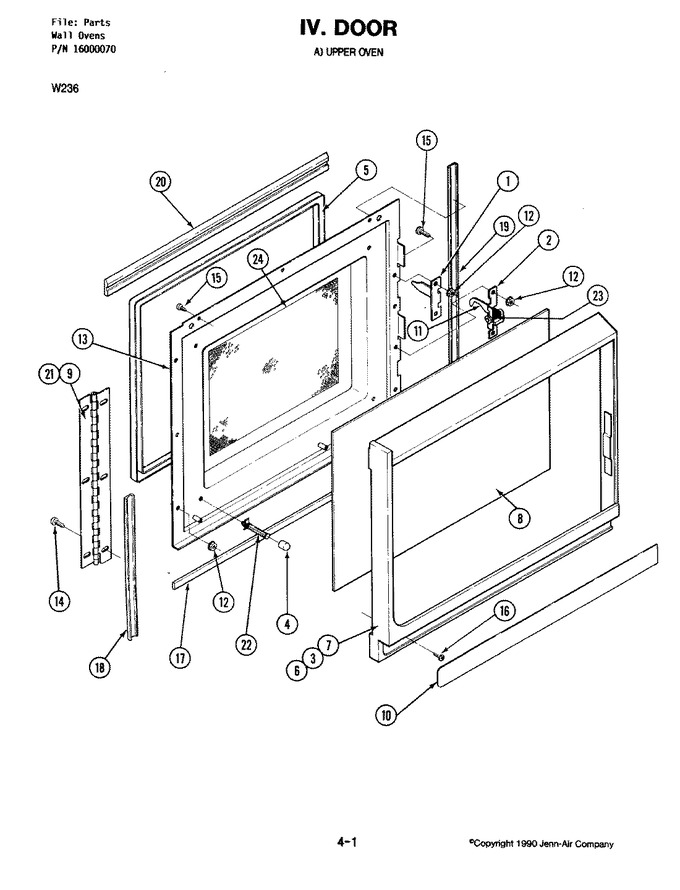

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y02030117		Activator, Monitor	1	Appelez-nous	-
2	Y02030116		Bracket, Door Latch	1	Appelez-nous	-
3	02010047		Bracket, Door Trim	1	Appelez-nous	-
4	Y02100135		Bumper	1	Appelez-nous	-
5	Y02100166		Choke, Filler (blk)	1	Appelez-nous	-
6	02120151		Extrusion, Handle (blk)	1	Appelez-nous	-
7	04021262		Frame, Door (blk)	1	Appelez-nous	-
8	Y02220096		Glass, Door	1	Appelez-nous	-
9	Y02200017		Hinge, Door	1	Appelez-nous	-
10	02100105		Insert (no Logo)	1	Appelez-nous	-
11	02190056		Latch, Door	1	Appelez-nous	-
12	Y02400007		Lens, Bulb	1	Appelez-nous	-
13	04021344		Bracket, Hinge (upper)	1	Appelez-nous	-
14	Y03010121		Screw	1	Appelez-nous	-
15	Y03020071		Screw & Washer (hi Lo)	1	Appelez-nous	-
16	Y03010118		Screw	1	Appelez-nous	-
17	02120114		Seal, Bottom	1	Appelez-nous	-
18	Y02120121		Seal, Hinge Side	1	Appelez-nous	-
19	Y02120122		Seal, Latch Side	1	Appelez-nous	-
20	02120153		Seal, Top	1	Appelez-nous	-
21	Y03120064		Shim	1	Appelez-nous	-
22	Y03120069		Spacer, Door Window	1	Appelez-nous	-
23	Y05080027		+ Dble Tape 36``	1	Appelez-nous	-
23	Y03180023		Spring, Door Latch	1	Appelez-nous	-
24	Y02220073		Window, Polyester	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
